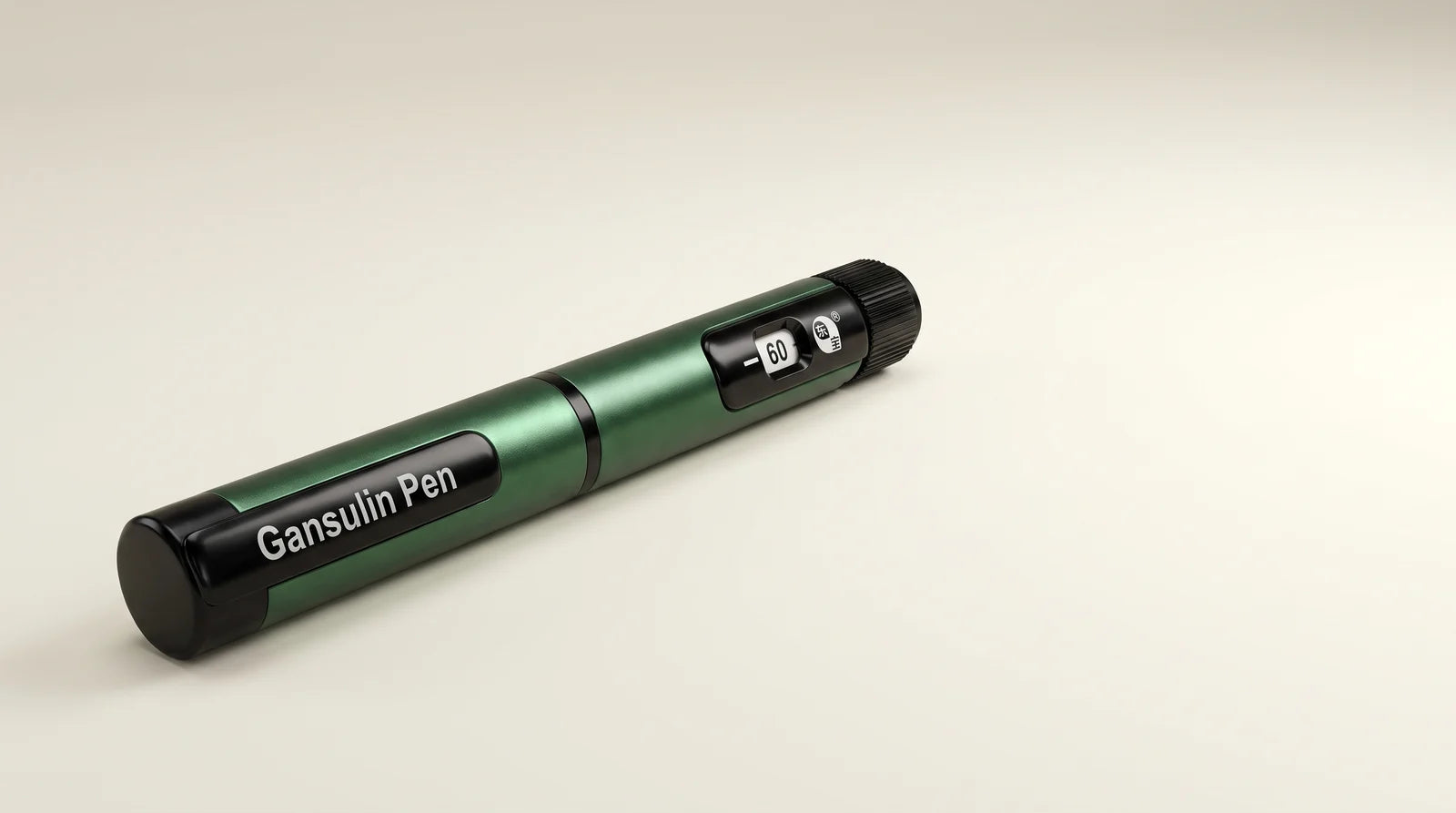

A dial-a-dose pen is a mechanical metering instrument. You set an amount on a knob, and the mechanism moves a plunger a matching distance to draw or dispense a fixed volume. The Gansulin all-metal reusable pen is a good example, so we will use it to walk through the parts.
The dose knob and window
Turning the dose knob rotates an internal screw. A number wheel behind the dose window turns with it, showing the amount you have set, from 1 up to 60 units. One unit corresponds to 0.01 ml on a standard U-100 scale, so 10 units is 0.10 ml. The window is offset so you read the number straight on, which reduces misreading from an angle.
The click you can hear and feel
Each unit is a mechanical detent. As the knob passes a unit, a sprung follower drops into the next groove, which produces a firm tactile bump and an audible click. This matters on the bench: you can count units by feel without watching the window, and a busy room does not mask a distinct click. It is confirmation built into the hardware rather than a printed scale you have to trust.
The end-of-travel stop
The dial physically stops when the amount you set is more than what remains in the cartridge. If the knob will not turn any further, the cartridge cannot cover that draw. The mechanism does the checking for you, which is a meaningful safeguard compared with a plain syringe.
Dialing back without waste
Set too much? Turn the knob back down. On a well-made pen the dose corrects without dispensing anything, so nothing is lost while you adjust. The Gansulin pen dials back to a 1-unit minimum.
Why metal, and why reusable
A machined metal body holds tolerances better than moulded plastic and survives being kept in a drawer or case for years. The cartridge is the only consumable, so a single pen replaces a pile of disposables. See the full pen specifications for dimensions and materials.
Want to work out concentrations and draw sizes? Our free peptide calculators handle the reconstitution and unit math.
