What actually separates a good peptide pen from a bad one

What it is

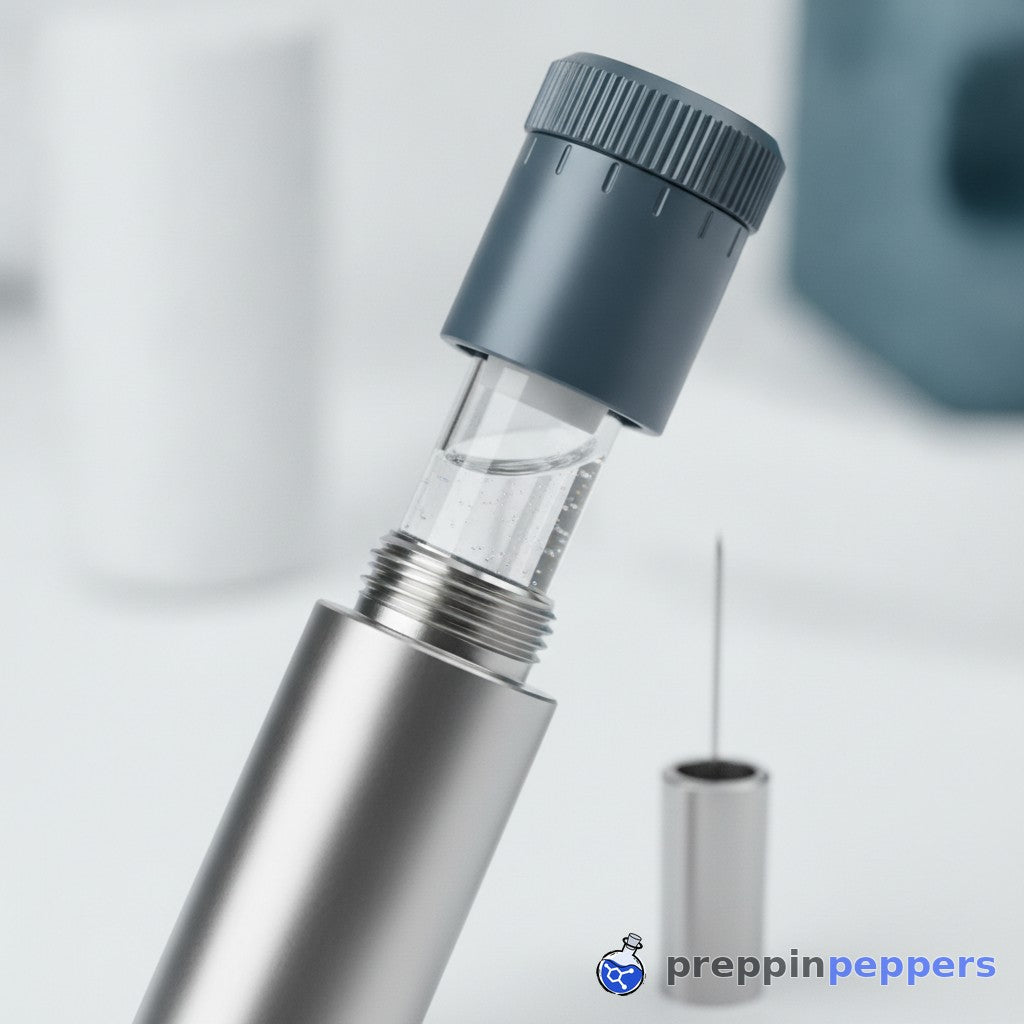

A peptide pen is a laboratory reconstitution instrument: a reusable handheld device that holds a glass cartridge and drives its stopper in controlled steps. It is hardware, not chemistry. Four parts define it:

In this article

1. Metal Pens vs Plastic Pens: The Real Trade-Off
2. Glass Cartridges: Tolerance Matters More Than You Think
3. Dead Volume: The Hidden Thief in Your Cartridge
4. Precision Click-Dial Accuracy: What the Numbers Actually Mean
5. The Diluent Question: Water Isn't Water
6. The Bottom Line
7. Frequently asked questions
8. What the community gets wrong

• Body — the frame. Machined metal holds tighter tolerances than molded plastic and sets how squarely the cartridge seats.
• Cartridge — a standard 3 ml glass barrel and rubber stopper. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
• Click-dial — advances the plunger in defined steps. Repeatability is the spec that matters, not how the click sounds.
• Plunger — drives the stopper through the barrel. Dead volume collects at the cartridge neck.

Needles are separate hardware (universal 28G–33G screw-on); cartridge fit is set by the cradle inside a pen's body, and we test and spec only our own.

Metal Pens vs Plastic Pens: The Real Trade-Off

The trade-off is not metal versus plastic. It is dimensionally stable hardware versus hardware that wears at the surfaces you handle most: the cartridge housing thread and the needle thread.

Plastic is lighter and cheaper, and adequate for a handful of cartridge swaps a year. Where it costs you is thermal movement. Take a plastic pen out of a 4°C fridge and handle it at room temperature and the barrel expands slightly; a metal body holds its dimensions, so the dial returns to the same position each time.

Thread Durability and Leaks

Plastic threads commonly strip after about 20 to 30 cartridge changes. The failure announces itself: a gritty feel as the cartridge screws in, then a slow leak into the pen body. Machined metal threads outlast that by years — but stamped metal threads fail exactly like plastic, so material alone proves nothing.

• Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
• The front thread takes universal 28G-33G screw-on pen needles.

Cartridge seating is a housing-depth question, so we speak only to our own pens — we have not tested other manufacturers' hardware.

Glass Cartridges: Tolerance Matters More Than You Think

The cartridge is where your reconstituted peptide lives. The spec that matters most is inner-diameter tolerance.

• High-quality glass cartridges: tight tolerances, within ±0.05 mm.
• Budget cartridges: can drift to ±0.2 mm.

A 0.15 mm variance in inner diameter changes delivered volume by roughly 5% to 8%.

Key point: Cartridge tolerances are hardware, and hardware drives dispensing accuracy — budget glass shows up as inconsistent volume on every dial.

Glass Composition: Borosilicate vs. Soda-Lime

Neither glass nor plastic is perfectly inert: glass flakes due to chemical delamination have been observed in parenteral liquid formulations after long-term storage (Jiang et al. 2013), the unpredictable nature of peptide binding to surfaces requires optimization of experimental containers (Goebel-Stengel et al. 2011), and cetrorelix adsorbed more to glass than to polypropylene (Grohganz et al. 2004). Soda-lime glass, common in budget cartridges, can leach sodium ions into acidic solutions — a real issue for peptides reconstituted in dilute acetic acid. Discard cloudy glass or cartridges showing manufacturing marks.

Which Cartridges Fit Our Pens?

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We have not tested our cartridges in other manufacturers' pens, so we cannot confirm fit.

Dead Volume: The Hidden Thief in Your Cartridge

Dead volume is the solution left trapped in the cartridge and needle assembly once the dial returns to zero — material that never reaches the collection tube.

A standard assembly retains 15–25 µL. In a 1 mL reconstituted volume, that is 1.5–2.5% of total material lost per dispense, however precisely the dial is set.

Low-Dead-Volume (LDV) Design

LDV cartridges cut retention to under 5 µL using precision-machined needle seats and shorter internal fluid paths. Below roughly 500 µL reconstitution volumes, the difference compounds quickly.

The Priming Volume Problem

Dead space also distorts low-end dial accuracy: if the target volume is 10 µL and dead space holds 20 µL, less than half of the first dispense is delivered — the remainder fills the void. In practice, priming a new pen with two to three full-dial dispensations clears it before collection begins.

Cartridge and Needle Fit

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.

Precision Click-Dial Accuracy: What the Numbers Actually Mean

A claim like "accurate to 1 microgram" means little alone. What matters in research hardware is repeatability: identical output across repeated dial settings, measured as coefficient of variation (CV).

What matters in research hardware is repeatability : identical output across repeated dial settings, measured as coefficient of variation (CV).

• Precision pens: deliver under 3% CV across the full dial range.
• Budget pens: may hold roughly 5% CV at high volumes, but often exceed 15% CV below 20 micrograms.

Dial Resolution and Verification

Dial resolution is the smallest increment the mechanism can reliably set. A printed 1-microgram scale is not the same as achievable resolution; mechanical play in the dial can make anything under 5 micrograms unrepeatable. Positive, mechanical click-stop feedback under finger pressure indicates each increment is properly seated.

To verify before relying on a pen: dispense ten consecutive settings into a tared vial, weigh each, and calculate CV. If variation exceeds 3% CV, the hardware is unsuitable for precision research. Dial drift usually traces to spring tension or click-detent wear rather than the printed scale.

The Diluent Question: Water Isn't Water

The diluent sits inside the fluid path, so it affects both how contents keep and how the hardware dispenses. It is a controlled variable, not a formality.

• Bacteriostatic water (0.9% benzyl alcohol) — the usual reconstitution diluent; the alcohol inhibits microbial growth after the vial is first punctured.
• Sterile water — no preservative, so nothing limits growth once the vial has been accessed.
• Unsterile lab water — an uncontrolled variable in any study.

Benzyl alcohol also lowers surface tension, altering droplet formation and cartridge seal mechanics, and adds slight plunger lubrication in a pen body. That same additive is why the diluent can influence stability in solution: change the diluent and you change the system. Plain water also shifts droplet size and low-volume dispensing accuracy.

Pick one diluent, record it, and keep it constant unless the protocol says otherwise.

The Bottom Line

The bottom line: a pen is only as good as its measurable hardware, not its price tag or branding. Four specs carry most of the weight:

• Machined metal body — a lathe-turned housing, not molded plastic
• Glass cartridge tolerances held to ±0.05 mm
• Low-dead-volume fluid path (<5 µL)
• Click-dial repeatability verified at <3% CV

Cartridge fit is the spec buyers discover last. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We state that plainly because most listings do not. We have not tested other manufacturers' pens, so fit claims apply to ours only. Judge a setup on verifiable tolerances and repeatability figures, not marketing copy.

What the research community gets wrong about peptide reconstitution pens and cartridges

The most common errors here are about fit and repeatability: both are bench measurements, not label claims.

Which cartridges and needles fit the pens

• Cartridges: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. No competitor discloses this.
• Needles: universal 28G–33G screw-on pen needles.
• Other pens: we have not tested other manufacturers' hardware, so we cannot say whether our cartridges or pens fit a third-party body. Compare stopper length and cartridge length against the pen in front of you.

What the community takes as settled — and shouldn't

• A big accuracy number on the box is not repeatability. "Accurate to 1 microgram" says nothing about whether ten dialed shots dispense the same volume. The bench number that matters is the coefficient of variation across the full dial.
• Metal does not automatically beat plastic. A metal body with stamped threads strips and leaks like a plastic one. Check whether the cartridge seat is machined; the material printed on the label tells you little.
• Dead volume is not a rounding error. Solution left in the cartridge and needle after the dial reads zero can be a real slice of a small reconstituted volume, and it skews the first low readings until the pen is primed.
• Bacteriostatic water is not only a preservative choice. Benzyl alcohol also lowers surface tension, changing how the tip forms droplets, so switching to plain water mid-study can shift dispensing behaviour with the peptide unchanged. Whether it changes a given peptide's stability is a question for your own stability data, not an assumption.
• Not all clear glass cartridges are the same. Soda-lime glass can shed sodium ions into acidic solutions; borosilicate is more chemically stable. Glass type is a spec worth checking, not a cosmetic detail.

From our bench: if you have run the ten-dispense gravimetric test on your own pen — dispensing into a tared vial and weighing each shot — send us the coefficient of variation and the dial setting. We collect repeatability observations across pen and cartridge types and share the range we see, with no vendor names attached.

Sources

Correction (2026-10-03): An earlier version said glass is chemically inert or does not leach, and that plastic leaches or loses more peptide than glass. Neither is perfectly inert, and which surface loses less peptide depends on the peptide; the passage now says so and cites the research.

Reminder: research and educational reference only. PreppinPeppers sells hardware and materials, not peptides. Not medical, dosing, or health advice, not evaluated by the FDA, and not intended for human or animal use.
