Why cheap needles are quietly ruining your peptide research

Needle choice in research

In peptide reconstitution research, needle choice is a variable you control: gauge sets flow resistance and septum wear, and reuse sets contamination risk.

In this article

1. The Needle Size Most Researchers Get Wrong
2. Metal Pens vs Plastic Syringes: What Actually Matters
3. Dead Volume and Cartridge Design: The Math That Saves Money
4. Bacteriostatic Water vs Plain Sterile Water: The Diluent Decision
5. Frequently asked questions
6. What the community gets wrong

What actually changes

• Gauge and bore: inner diameter sets flow resistance and how aggressively the needle wears the rubber septum on each insertion.
• Length: common research lengths run 4 mm to 12.7 mm — pick for the reconstitution setup, not from habit.
• Reuse: a used needle is the single biggest contamination vector in any reconstitution workflow. One fresh needle per vial entry.

What fits our pen hardware

• Needle thread: any universal 28G to 33G screw-on pen needle seats on the pen threads.
• Cartridge geometry: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.

We have not tested third-party pens, so we cannot confirm which cartridges fit them or whether ours fits theirs — that geometry has to be checked with whoever made the pen.

Why the cheapest option usually costs more

A cheaper needle is rarely identical to a pricier one built to a published spec. The differences show up as cored rubber septa, visible particulate, and inconsistent flow between supposedly identical units — variance that turns a clean reconstitution into rework.

The Needle Size Most Researchers Get Wrong

Our pens take universal 28G–33G screw-on pen needles — any gauge in that window seats correctly. The size most researchers get wrong isn't the gauge number. It's treating gauge as the whole needle spec, when the spec that fails first is the bevel and tip itself.

Gauge describes the bore only. It says nothing about how many septum punctures a tip survives, and that's where cheap needles quietly cost you samples.

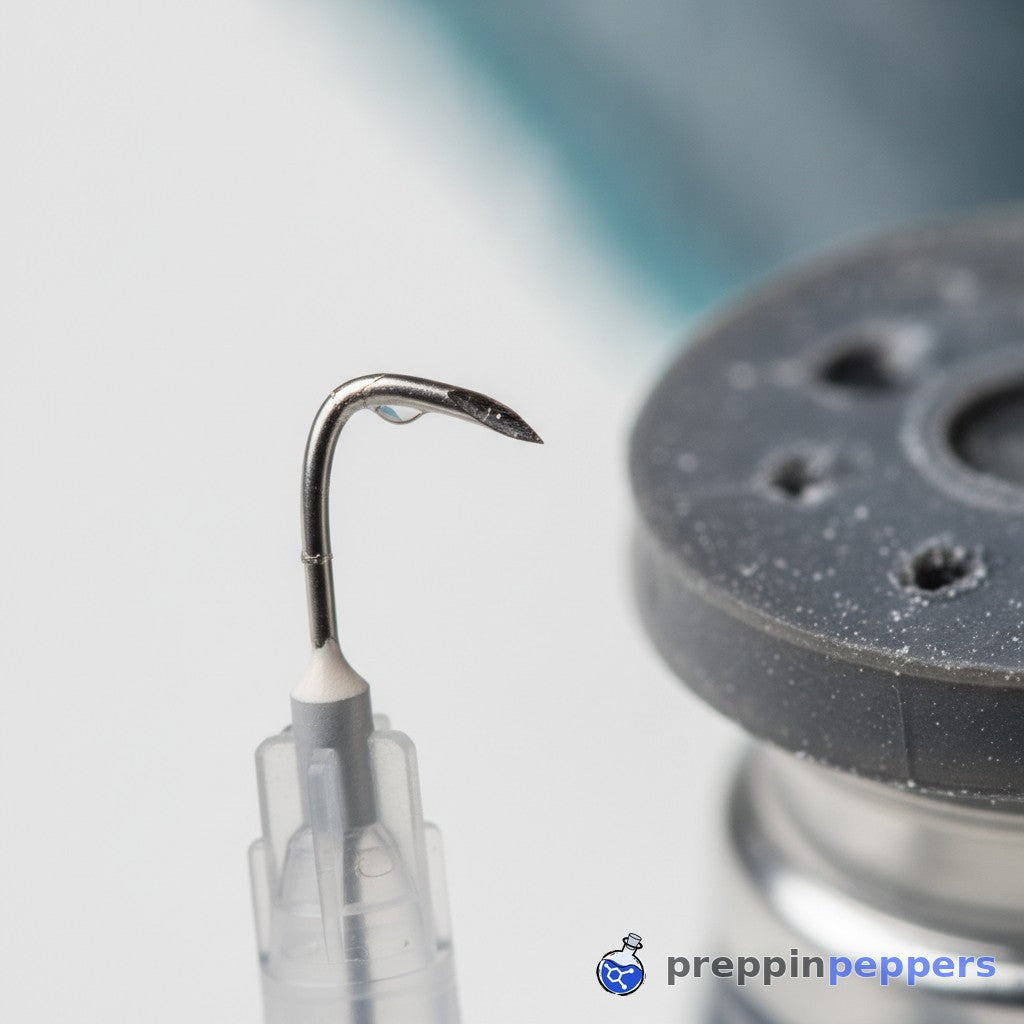

A needle is a consumable, not a forever-tool. After 3 to 5 septum insertions the tip deforms: under magnification the bevel rounds off and the opening mushrooms. That dulled tip cores the septum and drags rubber particles into the vial, giving aggregation nucleation sites and visible particulate.

What that means in practice:

• Gauge sets flow — 28G–33G all fit our pens; thinner gauges draw viscous solution more slowly.
• One needle per septum puncture — the cheapest contamination control there is.
• Reconstituting one vial? Swap the needle before storing, not before the next session.

Key point: Use a fresh needle for every vial penetration to prevent septum coring and rubber particle contamination.

Related sizing gotcha: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.

Metal Pens vs Plastic Syringes: What Actually Matters

Metal pens: consistency, with dead volume

A metal pen that takes 3 ml glass cartridges gives you two things a plastic syringe doesn't: consistent plunger force and inert metal surfaces. The barrel won't leach into your solution, and the click-dial sets volumes reproducibly.

The catch is dead volume. Roughly 0.08–0.15 ml stays in the cartridge tip and cannot be expelled at any plunger pressure — material you paid for, sitting in the 3 ml cartridge.

Which cartridges and needles fit the pens

The specification that determines whether a cartridge seats is stopper length, not thread type or brand:

• Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
• Pen needles: universal 28G–33G screw-on types.

Stopper length is rarely disclosed on cartridge listings, and it is the most common reason a cartridge fails to seat. Ask the supplier for the stopper length in mm before ordering. We have not tested third-party pen bodies, so we can only confirm fit on our own hardware.

Plastic syringes: full recovery, more plunger variability

Luer-lock syringes recover essentially every microlitre because the plunger pushes to the end of the barrel. The trade-off is plunger variability: two syringes of the same brand can need slightly different force to expel the same volume.

For routine bench work, either tool works. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.

Dead Volume and Cartridge Design: The Math That Saves Money

Dead volume is the solution trapped in the cartridge and needle hub after a fill. It is small, fixed, and it compounds every preparation.

A 5 mg vial at 1 mg/ml needs 5 ml of diluent — over a 3 ml cartridge. Split across two fills, roughly 0.1 ml stays behind per cartridge. On a $500 vial, that is about $10 lost per preparation. By contrast, luer-lock syringes recover more because the plunger reaches the base.

Which cartridges fit the pens

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. No competitor discloses this geometry. We have not tested other manufacturers' hardware, so we cannot confirm fit beyond our own pens.

Do the cartridges work with other pens too?

Stopper geometry and thread pitch vary between manufacturers. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. Confirm fit with the other maker first.

Cutting dead-volume loss

• Reconstitute in vial and aliquot into one cartridge.
• Use the largest cartridge your hardware accepts.
• Prime the needle hub once per vial.

Bacteriostatic Water vs Plain Sterile Water: The Diluent Decision

Short answer: for a preparation that will be worked through within 24–48 hours and then discarded, plain sterile water is fine. For anything accessed repeatedly over days or weeks, bacteriostatic water is the better bench default.

Bacteriostatic water contains 0.9% benzyl alcohol, which suppresses bacterial growth after a vial is first unsealed. Plain sterile water carries no preservative, so sterility between draws rests entirely on aseptic technique—a standard that is hard to hold on every access.

Chemical Compatibility Considerations

Yes—benzyl alcohol can affect peptide stability in solution. It is not inert, and chemically sensitive sequences, particularly those with ester bonds or other groups prone to hydrolysis, are the ones to watch. Run a small test batch in plain sterile water first and compare the two side by side before committing a whole vial.

Default to bacteriostatic water unless a specific incompatibility rules it out; the cost difference is small next to the protection it provides. Diluent choice is a bench decision about preservative versus compatibility, independent of the pen hardware and cartridges you reconstitute into. Label each vial with the diluent used and the date it was opened.

What the research community gets wrong about peptide reconstitution hardware

Most "faulty hardware" complaints trace back to fit and handling rather than defective parts. Here are the recurring questions from the lab widget, with what the bench actually shows.

Which cartridges fit the pens

Cartridge fit is decided by stopper length, not brand. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. If a cartridge will not click into the pen body, measure the stopper before assuming a defect.

Do the cartridges work with other pens

We have not tested other manufacturers' hardware, so we don't state whether our cartridges fit a third-party pen. Compare the stopper length and the needle thread on the pen you already own; if both match, the geometry should seat.

Needle thread and gauge

Our pens take universal 28G–33G screw-on pen needles. A bigger gauge number is a thinner needle — a #30 is finer than a #25. Reaching for a lower number because it sounds smaller means a wider hole and more septum damage, not a "better" fit.

Handling errors blamed on the material

• A needle is a consumable, not forever. After a few passes through a rubber septum the bevel dulls and can shave fragments (coring) into the vial, a routine cause of cloudy solutions blamed on the peptide. One fresh needle per vial removes the variable.
• Dead volume is fixed geometry, not sloppy technique. A glass cartridge retains a set volume in the tip that no plunger force expels. Treat it as a known property and measure it, rather than chasing a "measuring error" by pushing harder.
• Bacteriostatic water is not higher-grade water. Its only difference is added benzyl alcohol (0.9%, or 9 mg/mL on the common 30 mL label) that slows microbial growth in a repeatedly accessed vial — a handling choice, not a purity upgrade.
• What benzyl alcohol does to peptides. It can interfere with chemically fragile sequences in solution. Pairing it with sensitive material without checking compatibility is one of the easier ways to lose a sample before data is recorded.
• Shaking to speed dissolving can work against you. Vigorous shaking and vortexing create air/liquid interfaces and shear that the literature links to protein aggregation. A gentle swirl and letting the vial sit is the steadier habit.

From our bench: Measure the dead volume your setup leaves behind — fill a cartridge with water, expel it fully into a tared container, and note the difference in milliliters. Tell us the make, model, and recovery you saw, so other researchers can plan fills around real bench numbers.

Sources

Reminder: research and educational reference only. PreppinPeppers sells hardware and materials, not peptides. Not medical, dosing, or health advice, not evaluated by the FDA, and not intended for human or animal use.
