Key takeaways
- Detents physically lock the dial in place, preventing accidental volume drift during handling.
- A skipping click means the detent spring or gear is worn, requiring pen replacement.
- Forcing the dial past the stop damages the screw threads and ruins calibration.
- Flush the mechanism with distilled water after each week of use to avoid salt buildup.
- Test pen volume monthly by dispensing a known click count and measuring in a graduated cylinder.
In this article
If you work with peptides at the bench, you likely use a click-dial metering pen to measure milliliters of diluent or volume of reconstituted solution. Those clicks feel solid and precise, but they are not just for reassurance. They are the core of the pen's ability to deliver an exact volume every time. This article explains the mechanical heart of your pen: the click mechanism and the detents that make it work. Understanding this will help you spot errors, maintain accuracy, and avoid common mistakes that waste expensive material.
How the click-dial metering pen works on the inside

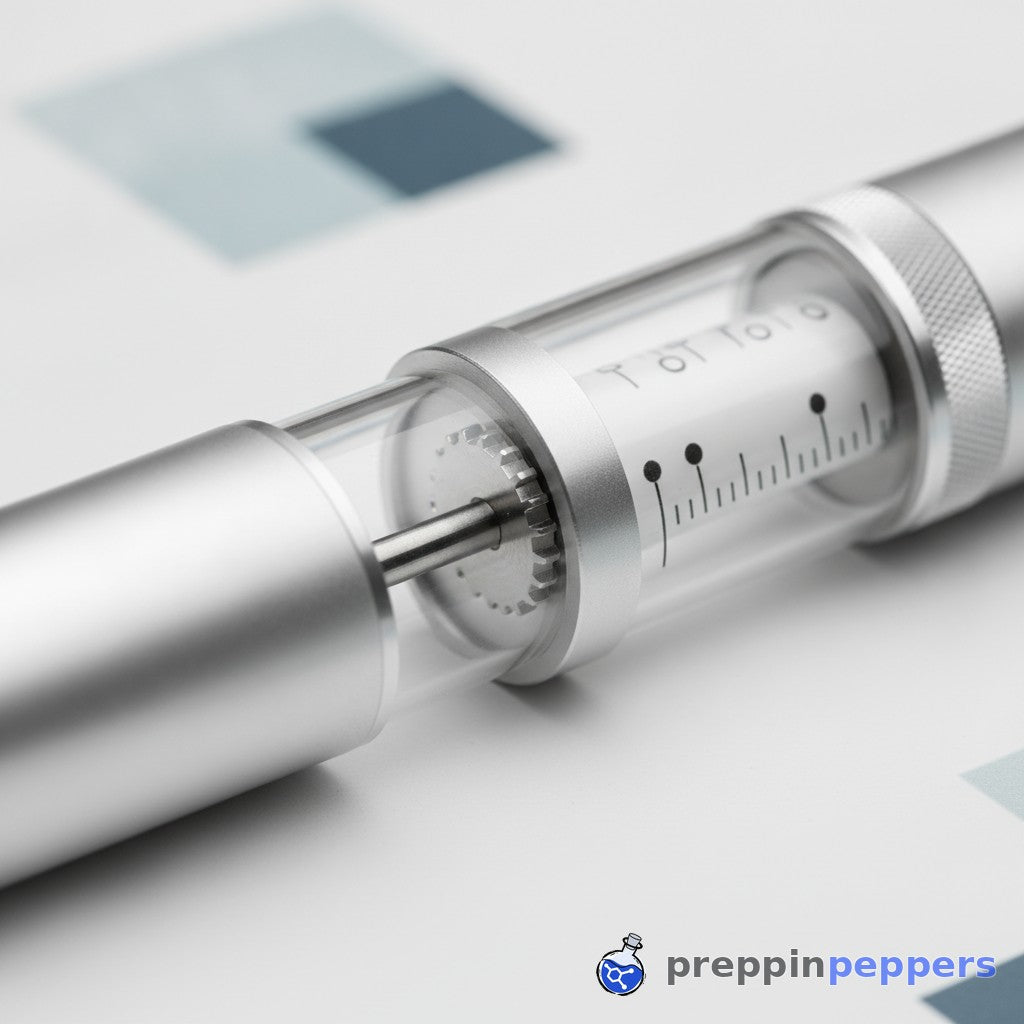

A click-dial pen works like a precision screw. Inside the barrel is a threaded rod called a metering screw. When you rotate the dial, the screw moves forward or backward a fixed distance. That movement pushes or pulls a plunger inside a glass cartridge, such as a 3 ml vial, to expel liquid. The dial is connected to a gear that clicks over a spring-loaded ball or a ramped tooth. This is the detent, a small mechanical stop that locks the gear into a set of precise positions. Each click means the gear has advanced exactly one step, which translates into a repeatable volume of liquid.
The number of detents per full rotation determines how fine the control is. More detents mean smaller steps and finer volume adjustments. The spring that presses the ball into the gear teeth must be stiff enough to hold position but not so tight that it wears out or skips. The material of the detent and gear matters too, metal on plastic or ceramic on hardened steel can change how many cycles the pen maintains accuracy.
Why detents are critical for research accuracy
Detents do two jobs. First, they give you tactile and audible feedback so you know exactly how many steps you dialed. Second, they hold the dial in place once you stop turning. Without detents, the screw could drift from vibration, temperature changes, or even your own hand movement while you cap the needle. In research, where you measure fractions of a milliliter, this drift can ruin a batch. For example, if your pen uses a 100-step gear and each step is 0.01 ml, one misplaced click introduces a 1% error. Applied across multiple vials, that adds up fast.
The detent also prevents you from overshooting the target. You can count clicks reliably, which reduces reliance on reading fine graduations on a glass tube. Many researchers prefer click pens over syringe barrels because they can verify their volume by count without looking at a scale. This is especially useful when handling multiple vials in a sterile hood where you wear gloves and cannot read small markings easily.
Common bench mistakes that waste your work
Three errors are most common. First, forcing the dial past the last click. Some pens have a hard stop at the end of the screw travel. Crank the dial beyond that stop and you strip the gear or damage the detent spring. The pen then loses calibration. Always know the maximum volume your pen can deliver and do not exceed it.
Second, using a pen that feels loose or has a worn detent. If the clicks become quieter or the dial rotates too freely, the spring tension is dropping. This increases the chance of skipping a detent and delivering the wrong volume. Replace the pen or send it for servicing if you notice this.
Third, not flushing the mechanism between uses. Diluent residues can crystallize inside the screw threads or under the detent ball. Over weeks this makes the action sticky and unpredictable. Rinse the internal components with distilled water and dry them per the manufacturer instructions. Do not let dried bacteriostatic water salts build up.
Practical steps to trust your pen at the bench
Before you start work, test the pen. Fill it with distilled water, dial a known number of clicks, and dispense into a graduated container. Compare the measured volume to the expected volume based on the click count. Do this once a month or after any drop. It takes two minutes and can catch a failing detent before it ruins a run of samples.
Store the pen horizontally or with the tip up when not in use. This stops any residual liquid from draining back into the screw housing. If you see liquid inside the dial window, disassemble and dry it immediately.
Finally, match your pen to your task. A pen with fine detents (say 0.005 ml per click) is great for small volumes but annoying for large ones because you need many rotations. Keep a coarse pen for fast fills and a fine one for exact measurements. Label them clearly so you do not grab the wrong one in a hurry.
Frequently asked questions
How many clicks does a typical dosing pen have per rotation?
Common models use 50, 100, or 200 detents per full rotation. More detents mean finer control but slower dialing. Check the spec sheet for your pen's exact count.
What causes a dosing pen to lose click accuracy?
Worn detent spring, dried diluent crystals inside the gear, or physical damage from forcing the dial past its stop are the top reasons. Regular rinsing and gentle use preserve accuracy.
Can I clean a sticky click dial without disassembly?
Yes. Flush the internal cavity with distilled water through the dispense tip while dialing back and forth, then dry completely. If stickiness persists, disassemble for deeper cleaning.
Related from our lab: the pen · cartridges · bacteriostatic water · reconstitution calculators
Shared by PreppinPeppers for research, educational, and demonstration awareness only. We link to third-party coverage; we do not endorse it, and nothing here is medical advice or a recommendation to use any substance in humans or animals. Our products are sold for laboratory research use only.
More in our reusable reconstitution pens collection.
What the research community gets wrong about click-dial metering pens
Click-dial pens feel precise, so it is easy to trust them more than the evidence supports. A few common assumptions cause wasted material at the bench.
- A click does not prove the volume. A detent only confirms the gear snapped forward one step. The metering screw, the plunger, and the barrel seal can still be off. The only way to know what came out of the vial is to dispense into a graduated container and measure it.
- More detents does not always mean more accurate. Finer steps help only if the mechanism holds its tolerance. A worn spring on a fine pen can skip a step and land further off than a well maintained coarse pen. Step size and mechanical wear are two separate things.
- The dial does not self-correct when you turn it back. There is a small amount of slop (backlash) between the gear and the screw. Reversing direction can lose a fraction of a step before the screw starts moving again. If you overshoot, dial well past the target and approach it from the same direction each time.
- A loud, firm click is not a pass. The sound tells you the ball rode over a tooth, not that the spring tension is still in spec. Device dose accuracy work (see the sources below) measures the actual delivered volume against a target, not how the dial feels in your hand.
From our bench: Run a simple check on one of your pens and tell us the numbers. Fill it with distilled water, dial a set click count, and dispense into a graduated cylinder. Record the click count, the volume the pen window says it should deliver, and the volume you actually measured. Then repeat once approaching the target from the opposite direction to see if backlash shifts your reading. Share your measured-versus-expected difference and how many use cycles that pen has on it, and we will add real bench data to this guide.
Sources
- Bacteriostatic Water for Injection, USP , FDA/DailyMed label (0.9% benzyl alcohol)
- Duerkop et al., Biotechnol J 2018 , Impact of Cavitation, High Shear Stress and Air/Liquid Interfaces on Protein Aggregation
- Sigma-Aldrich (Merck) , Handling and Storage Guidelines for Peptides and Proteins
- Clarke A, Spollett G. Dose accuracy and injection force dynamics of a novel disposable insulin pen. Expert Opin Drug Deliv. 2007. PMID 17335413
- Asakura T, et al. Dose accuracy of a reusable insulin pen using a cartridge system with an integrated plunger mechanism. Expert Opin Drug Deliv. 2006. PMID 16948562
- Dose Accuracy and Reliability of a Connected Insulin Pen System (tested against ISO 11608-1). J Diabetes Sci Technol. 2026. PMID 39881439
