Why your pen depot is wasting your expensive peptide

What it is

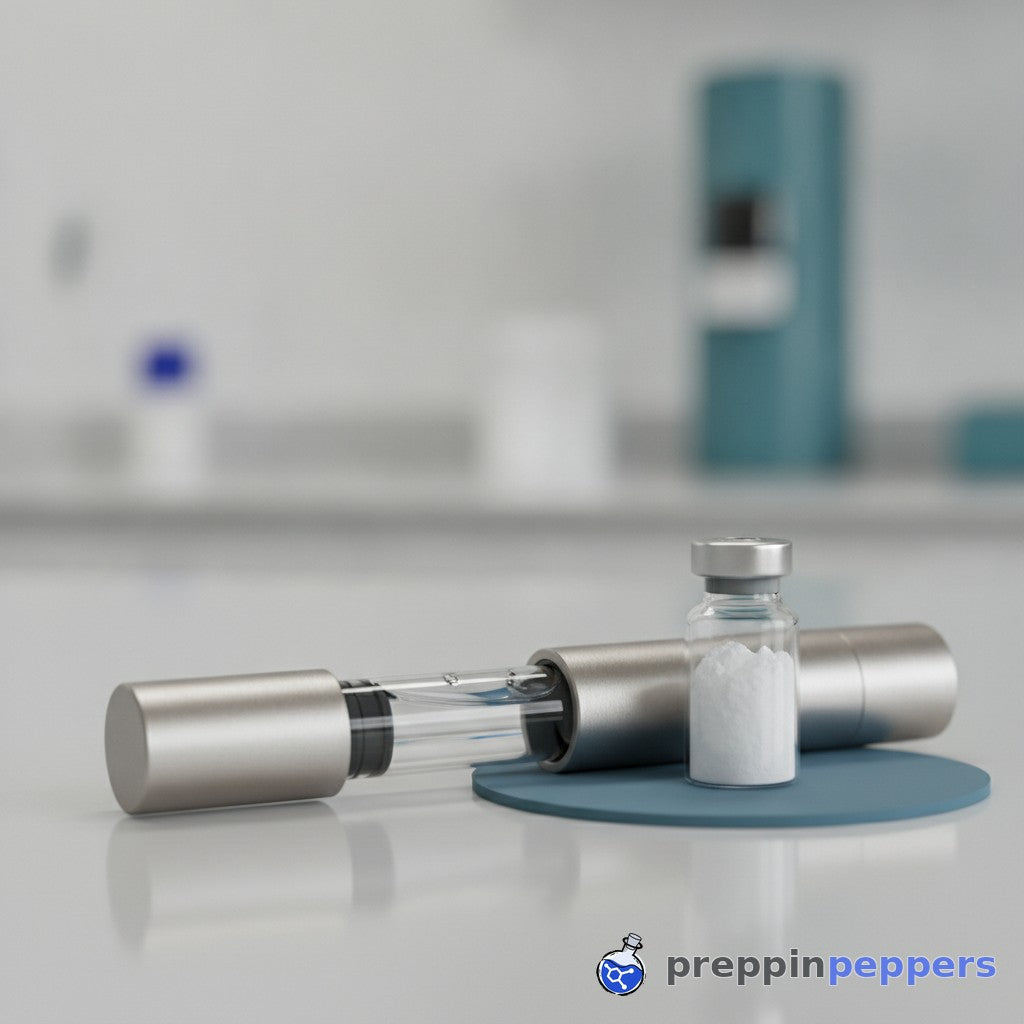

A pen depot is a reusable laboratory instrument: a body that holds a 3 ml glass cartridge and transfers measured volumes of diluent during reconstitution.

In this article

1. Metal vs. Plastic: The Body of the Pen Matters
2. Glass Cartridge Tolerances and the Dead Volume Problem
3. Precision Click-Dial Accuracy: Numbers You Can Trust
4. Diluent Choice and the Storage Reality
5. Frequently asked questions
6. What the community gets wrong

Three parts matter:

• Body — metal holds its dimensions better than plastic and survives repeated cleaning.
• Cartridge — standard 3 ml glass. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
• Needle — universal 28G–33G screw-on pen needles.

We have not tested our cartridges or needles against third-party pens, so we cannot confirm fit either way. Check stopper length and needle thread before loading.

Choosing on price or looks rather than fit is how diluent gets wasted.

Metal vs. Plastic: The Body of the Pen Matters

The depot body has one job: hold the 3 ml cartridge rigidly and let the plunger travel straight. The material decides how well it keeps doing that.

• Metal (aluminium or stainless): rigid, dimensionally stable and heavier, so it resists flex and holds thread alignment over years of use. It also conducts heat readily, so it tracks ambient temperature rather than insulating the cartridge from it.
• Plastic: light and inexpensive, but more prone to flex and static cling, and repeated heating and cooling cycles can open micro-fractures around the threads — the point where cartridge seating loosens first.

Which cartridges fit: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. No competitor discloses that, and it is the most common reason a "compatible" cartridge will not sit flush.

Cartridges in other pens: we have not tested our cartridges outside our own hardware, so we cannot confirm fit either way. Needles are simpler — our pens take universal 28G–33G screw-on pen needles.

Glass Cartridge Tolerances and the Dead Volume Problem

The glass cartridge is where your diluent lives. Neither glass nor plastic is perfectly inert: glass flakes due to chemical delamination have been observed in parenteral liquid formulations after long-term storage (Jiang et al. 2013), the unpredictable nature of peptide binding to surfaces requires optimization of experimental containers (Goebel-Stengel et al. 2011), and cetrorelix adsorbed more to glass than to polypropylene (Grohganz et al. 2004). What varies is dimension — and one measurement decides whether a cartridge will seat at all.

Which cartridges fit the pens?

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. Most cartridge listings never state which stopper they use — which is why we do.

Do the cartridges work with other pens too? We have not tested other manufacturers' pens, so we will not claim a fit either way. Check any third-party pen's own spec sheet instead.

Understanding Dead Volume Loss

Experienced lab techs know the real enemy is dead volume: the small amount of liquid trapped below the plunger after you have pushed it as far as it will go.

With a standard 3 ml cartridge, dead volume is often around 0.05 to 0.1 ml. If you are transferring 0.9 ml of diluent, losing 0.1 ml means you are off by over 10%. You either underfill your vial or waste diluent.

Key point: Cartridges with a conical (V-shaped) bottom direct liquid to the center and minimize unrecoverable dead volume.

When sourcing, always ask for the dead volume specification. A difference of even 0.02 ml matters for precision.

Precision Click-Dial Accuracy: Numbers You Can Trust

A click-dial pen converts dial rotation into plunger travel: one click equals a fixed volume, typically 0.01 ml or 0.1 ml depending on the model. Weak springs and poorly machined gears are where budget hardware drifts, and the error is usually worst across the first 0.3 ml of travel.

Verifying Accuracy Gravimetrically

Never assume a pen is calibrated out of the box. Verify it at the bench:

1. Fill the cartridge with pure water (1.00 g per 1.0 ml at room temperature).
2. Dispense 1.0 ml into a small weigh boat on a calibrated laboratory balance.
3. Compare the mass against the nominal volume: 1.05 g where 1.00 g is expected means the dial delivered 5% more liquid than it claims.

Metal pens of this class usually include an adjustment screw for that drift.

Why Cartridge Seating Changes the Numbers

Dial travel only means anything if the cartridge seats correctly. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. For the same reason we can't say whether our cartridges or pens fit another manufacturer's hardware; we have never tested that.

Diluent Choice and the Storage Reality

The pen depot is just the hardware; your diluent is the variable you control. The common choice is bacteriostatic water (BAC water), where the benzyl alcohol preservative limits microbial growth in a cartridge stored and reused over days.

Does benzyl alcohol affect peptide stability in solution? It can. Benzyl alcohol is a preservative, not a stabiliser — its job is limiting microbial growth, and it is not chemically neutral for every sequence. Acid-sensitive compounds may need sterile saline or a custom buffer instead. Match the diluent to the peptide's stability data before you fill, not after.

Best Practices for Reconstitution Storage

Storage is where routine fails. A filled pen depot is not a set-and-forget item:

• Refrigerate filled cartridges at 2°C to 8°C; plan on a 72-hour working window.
• Avoid prolonged diluent contact: the rubber plunger tip can slowly absorb compounds from the solution.
• Keep peptide dry (lyophilized) in a freezer and fill the cartridge fresh on the day of use.
• Fill only cartridges that seat: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.

What the research community gets wrong about pen depots

A reusable pen depot looks simple, so it is easy to trust it more than it deserves. The mix-ups below trace back to three things: fit, drift and time in the cartridge.

Which cartridges actually fit

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. No competitor discloses this.

We have not tested other manufacturers' pens, so we cannot say whether our cartridges work in them, or theirs in ours. Treat any cross-brand fit claim as unverified until it is backed by measurements.

Assumptions that cost you sample

• Trusting the dial out of the box. The number on the dial is a design target, not a measured fact, and a metal pen drifts over time. Weigh the water it actually dispenses on a lab balance first.
• Assuming a "3 ml" cartridge gives you all 3 ml. Liquid trapped in the tip below the plunger (dead volume) never comes out, and on a small transfer that can throw your fill off by a visible percentage.
• Thinking any same-size cartridge will fit. Stopper length, outer diameter tolerance and tip shape (conical versus flat) change the fit in the barrel and the dead volume. Ask for the spec sheet.
• Treating plastic and metal as only a price difference. A plastic body warms fast in the hand and passes that heat to the diluent, and cheaper plastics crack at the threads over repeated cold-to-warm cycles.
• Using the filled pen as long-term storage. The rubber plunger tip can slowly take up compounds from the diluent, so a pen left filled for days is not a fresh one. Keep material lyophilized and fill fresh.

From our bench: We want a real picture of how these pens perform, and that only works with measured data. If you have checked yours gravimetrically, send the pen body material, the cartridge tip shape (conical or flat), the dial volume you set, and the average grams of water dispensed across several runs.

Sources

Correction (2026-10-03): An earlier version said glass is chemically inert or does not leach, and that plastic leaches or loses more peptide than glass. Neither is perfectly inert, and which surface loses less peptide depends on the peptide; the passage now says so and cites the research.

Reminder: research and educational reference only. PreppinPeppers sells hardware and materials, not peptides. Not medical, dosing, or health advice, not evaluated by the FDA, and not intended for human or animal use.
