Why your vigor peptide pen dial reading may be off

What it is

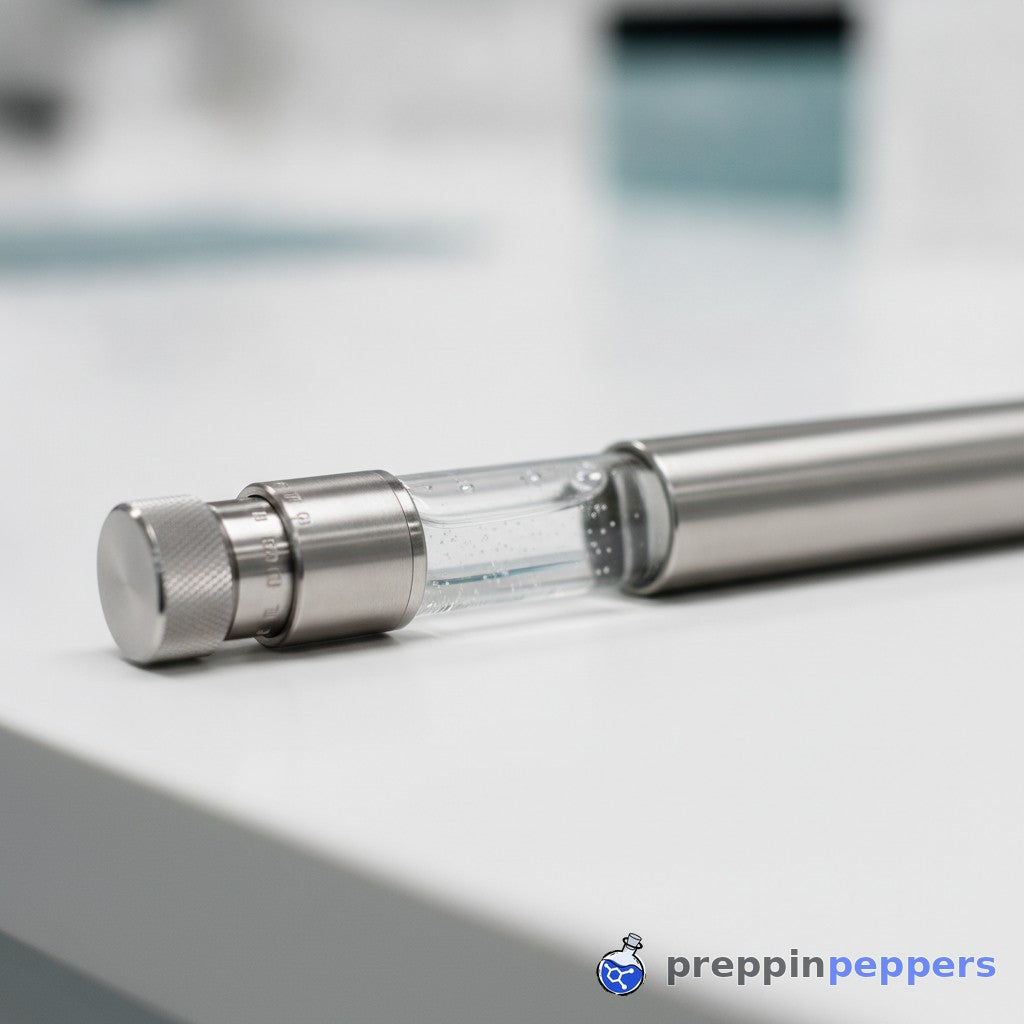

A vigor peptide pen is a reusable, metal-barreled dispensing device that holds a standard 3 ml glass cartridge and lets researchers dial in precise volumes of reconstituted peptide for consistent sample handling. The dial sets plunger travel, not delivered volume directly — the distinction the rest of this article explains.

Key takeaways

• Dead volume of 5 to 15 microliters per cartridge tip compounds into significant volume loss when dispensing aliquots of 20 microliters or smaller.
• Cartridge bore variation between manufacturing lots changes the microliters-per-click relationship; buy from the same lot when reproducibility matters.
• A gravimetric check with bacteriostatic water before first use is the only way to confirm a pen's actual delivery accuracy.
• Rubber plunger drag from inadequate lubrication causes end-of-stroke errors that look like pen inaccuracy but are a maintenance issue.
• Storing a loaded cartridge assembled with the needle attached allows capillary-driven oxidation at the hub; remove the needle and cap the tip between sessions.

Our pens take universal 28G-33G screw-on pen needles and a standard 3 ml glass cartridge with an 11 mm long plunger (stopper) - the cartridge we sell. Some 3 ml cartridges use a shorter, roughly 8 mm plunger instead; a pen is built for one plunger height, so a mismatched cartridge won't dose correctly even though the glass looks identical. We've tested this pen only with our own cartridge, so we can't confirm fit with other manufacturers' hardware - check plunger height before combining parts sourced elsewhere.

If your dial reads 10 units and the actual delivered volume runs short, the most likely culprits are unaccounted dead volume, cartridge bore variation, and a plunger that was never fully primed.

Metal barrel versus plastic: why the body material changes your numbers

Most budget peptide pens are injection-molded polycarbonate or ABS plastic. While they function right out of the box, three bench realities wear on them quickly.

Mechanical flex and alignment

Plastic barrels flex slightly under normal grip pressure when you depress the plunger. That flex torques the cartridge off-axis, making the rubber stopper drag unevenly and deliver an inconsistent volume. In contrast, a metal barrel—typically 304 or 316 stainless steel or anodized aluminum—does not flex under normal operational force.

Glass cartridges have a nominal outer diameter, but real-world tolerance varies by 0.1 to 0.15 mm between manufacturers. A precision-machined metal barrel holds the cartridge concentrically, whereas a plastic barrel with wider bore tolerance allows the cartridge to rock, causing significant volume error at small dial settings.

Chemical and solvent resistance

Plastic is also permeable to certain solvents over time. If a cartridge leaks even a trace of acetonitrile (frequently present in peptide stocks) against the interior, a polycarbonate shell can craze and cloud within weeks. Stainless steel remains entirely inert to standard bench solvents.

Glass cartridge tolerances and the dead volume problem

A pen dial measures linear plunger travel, not fluid volume directly. That conversion only holds if the cartridge inside the pen matches the internal bore and plunger geometry the pen was engineered around. Swap in a cartridge built to different tolerances and the volume-per-click relationship shifts, even though the dial reads the same.

Cartridge compatibility

Our reusable pens are built around a standard 3 ml glass cartridge fitted with an 11 mm long plunger (stopper) — the cartridge we sell. Not every 3 ml cartridge on the market uses that plunger height: a shorter format, roughly 8 mm, is also common, and the glass body looks identical from the outside. A pen engineered for one plunger height will not dose correctly with the other, so if you source cartridges elsewhere, confirm the 11 mm long plunger before loading one into the pen. We have not tested cartridges from other manufacturers and cannot confirm fit beyond our own stated spec.

The dead volume challenge

Dead volume is the residual fluid trapped between the cartridge tip and the needle hub after the plunger bottoms out — it cannot exit through the needle. This applies to every screw-needle cartridge system, and it accounts for a larger share of a small draw than a large one. Our pens take universal 28G–33G screw-on needles, and needle length is one of the variables that affects how much residual volume stays in the hub. Treat the final portion of any cartridge as unreliable for precise aliquoting, and keep your needle setup consistent across a fill if you are tracking volume closely.

Verifying your pen's actual delivery before you trust the dial

Vigor pens and precision research dispensers use a screw-thread dose mechanism: each click advances the plunger a fixed distance. One unit commonly equals 10 microliters, but actual volume depends on thread pitch and cartridge inner bore — not on the dial number alone.

Cartridge fit matters here. Our pens are built for standard 3 ml glass cartridges with an 11 mm long plunger (stopper) — the cartridge we sell. Some 3 ml cartridges use a shorter, roughly 8 mm plunger instead; the glass looks identical from outside, but that format is sized for a different pen and will not dose correctly in ours. If sourcing cartridges elsewhere, check plunger height first. We haven't tested other manufacturers' pens, so any cartridge-and-pen pairing outside what we sell should be run through the gravimetric check below before you trust its dial.

Step-by-step gravimetric verification

Confirm actual delivery for your specific hardware combination with this check:

Because volume depends on cartridge bore, different cartridges can deliver varying amounts at identical settings.

1. Load a cartridge with plain water (or bacteriostatic water, which matches typical solution viscosity).
2. Tare a precision balance and position a small collection container on the pan.
3. Dial a fixed setting and depress the plunger fully into the container. Water weighs 1 mg per microliter, so output weight should match expected volume.
4. Repeat three times and average the results. Well-functioning hardware holds replicates within 2 to 3 percent of target.
5. If average deviation exceeds 5 percent, check cartridge seating, confirm the air slug was purged, and inspect needle tightness before assuming mechanical failure.

Diluent choice and storage: the details that protect your stock

Bacteriostatic water is the standard diluent for reconstituting research peptides in a multi-use cartridge. Its 0.9 percent benzyl alcohol content suppresses microbial growth between draws, while plain sterile water offers no such protection. Benzyl alcohol is a preservative, not a stabilizer - it does not stop degradation from heat, light, or time, so a preserved solution can still lose integrity if mishandled.

Handling acidic diluents

Peptides with low solubility in neutral buffers often need dilute acetic acid (typically 0.1 to 1 percent) for complete dissolution. Confirm cartridge components are chemically compatible first: standard borosilicate glass cartridges withstand mild acetic acid, but rubber plungers can swell under prolonged exposure to higher concentrations.

Proper storage conditions

A loaded cartridge left at room temperature degrades quickly; refrigerate at 4°C if a pen must sit overnight. Never freeze - ice crystals distort the rubber plunger and risk cracking the glass tip seal. A solution that visibly changes color, such as a copper-containing peptide shifting from blue toward clear, signals oxidative breakdown rather than a cosmetic quirk, so set that cartridge aside.

Four bench mistakes that waste expensive cartridge fills

Avoid these common laboratory errors when handling cartridge pens:

• Skipping the air purge: Dial and expel two units after loading a fresh cartridge. Unpurged air pockets at the tip distort subsequent dispensing volumes.
• Overtightening the needle: Screwing a needle on too tightly compresses the elastomeric seal and can fracture the glass hub. Maintain finger-tight torque.
• Ignoring plunger drag: Dry rubber plungers drag against glass walls, leaving the dial reading inconsistent with actual displacement. Use manufacturer-approved silicone grease; never use petroleum lubricants, which degrade rubber seals.
• Leaving the needle attached between sessions: Capillary draw pulls liquid into the needle hub, accelerating oxidation and evaporation. Detach the needle after each session and install the protective tip closure.

What the research community gets wrong about Vigor peptide pens

These pens look simple, so a few bench assumptions keep recurring - and each one quietly wrecks quantitative accuracy or wastes reagent:

• The dial number is not a volume: Each click advances the plunger a fixed linear distance, not a fixed volume. Because delivered volume depends on cartridge bore diameter, identical dial settings can produce different volumes across cartridge sources.
• "Any cartridge will fit" is not a safe assumption: Our pens are built for standard 3 ml glass cartridges with an 11 mm long plunger - the cartridge we sell. A shorter, ~8 mm plunger also exists in 3 ml glass, and the glass looks identical from the outside. That shorter format is built for different pen geometry and will not dose correctly in ours, so check plunger length before loading any cartridge sourced elsewhere.
• Assuming our hardware works with other manufacturers' pens: We have not tested our cartridges in third-party pens, or third-party cartridges in ours, so we cannot confirm cross-compatibility either way. Match cartridge and pen from a single, specified source rather than mixing brands.
• Blaming the pen for maintenance issues: Short dispensing is frequently caused by a dry, dragging plunger or an unpurged air pocket. Verify seating, purge air, and apply recommended silicone lubricant before assuming mechanical failure.
• Treating the entire cartridge volume as usable: Residual dead volume in the hub never exits. Plan experimental aliquots around this baseline loss rather than attempting to dispense the final fraction.
• Assuming bacteriostatic water equals sterile water: The 0.9% benzyl alcohol preservative is what suppresses microbial growth across multiple accesses. Plain sterile water is not formulated for multi-session storage.

Pen needles are simpler: ours accept universal 28G-33G screw-on needles, so needle gauge is rarely the source of dial-reading confusion - cartridge mismatch and plunger drag almost always are.

Sources

Reminder: research and educational reference only. PreppinPeppers sells hardware and materials, not peptides. Not medical, dosing, or health advice, not evaluated by the FDA, and not intended for human or animal use.
