Reagent pen precision

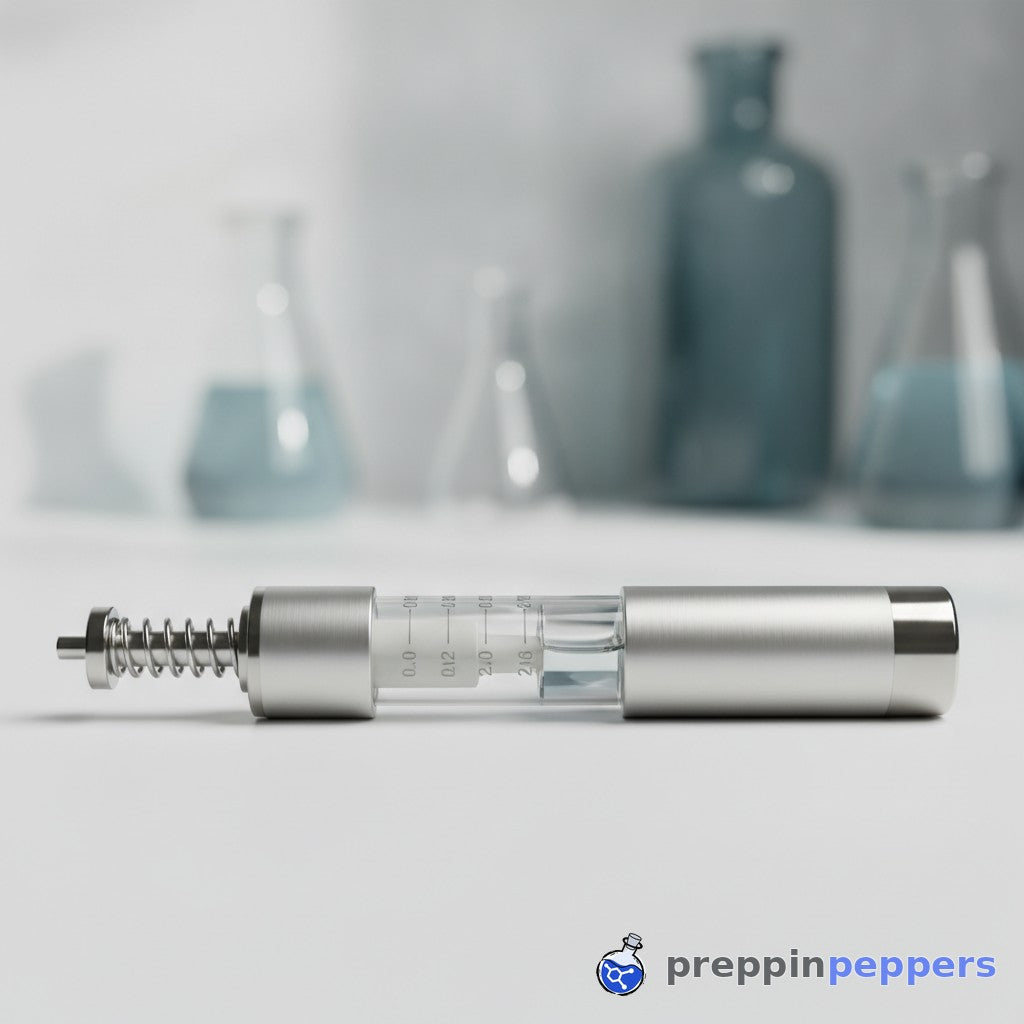

A peptide reconstitution pen is a mechanical device that meters diluent in fixed click increments. Published tolerances run about ±0.05 to ±0.15 mL per click, and uncounted dead volume can push concentration further off than that.
In this article
Our pens are built for one spec: the 3 mL glass cartridge with an 11 mm long plunger (stopper) - the cartridge we sell. Dial, thread, and plunger travel are calibrated to that stopper height to keep click volume consistent.
We haven't tested our hardware against other manufacturers' pens, so we can't confirm cartridge fit outside our own lineup. 3 mL cartridges also ship with a shorter, roughly 8 mm plunger that looks identical from the outside but won't seat correctly in a pen built for 11 mm.
Key point: pens are matched to one plunger height. Confirm the 11 mm long plunger on any cartridge before loading it.
What "precise" actually means
| Metric | Typical value |
|---|---|
| Quality metal pen, tolerance per click | ±0.05 ml |
| Cheap plastic pen, tolerance per click | ±0.15 ml or more |
Precision is the gap between what the dial is set to and what actually leaves the needle. On a reusable pen, that gap is a function of the plunger fit and threading, not guesswork. A well-machined metal pen with a tight plunger typically holds ±0.05 ml per click; plastic pens can drift to ±0.15 ml or more as components wear.
That gap matters more than it looks. Mix a 5 mg vial with 1 ml of diluent, and a 0.1 ml measuring error shifts the resulting concentration by 10% — the stock reads 5 mg/ml but is actually closer to 4.5 or 5.5. Any further step performed from that stock — splitting it into smaller volumes, for example — carries the same error forward, so small dial inaccuracies compound rather than average out.
Metal versus plastic: the real trade-off
Material stability and seal quality
Metal pens cost more upfront, but the barrel and plunger are machined from brass or stainless steel. The mating surfaces seal better, and metal doesn't swell or shrink with temperature the way nylon or polycarbonate does.
In a cold room or a 37°C incubator, a plastic pen's internal fit shifts. A metal pen's tolerances stay consistent across typical bench temperatures.
Longevity and chemical resistance
The other advantage is longevity: a well-maintained metal pen lasts years. Plastic pens often crack at the barrel-coupling point after 50 to 100 uses, especially with bacteriostatic water, whose mildly acidic pH accelerates polymer fatigue.
Thermal conductivity
The downside of metal is heat conduction. Holding a metal pen while drawing cold diluent slightly warms the barrel, causing expansion that can affect the first draw volume.
Plastic insulates against this, which is why some researchers prefer it for cold-room work. For everyday bench use at room temperature, though, metal wins on durability and seal precision.
Which cartridges fit, and do they work in other pens?
Our pens are built for standard 3 ml glass cartridges with an 11 mm long plunger (stopper) - the cartridge we sell. Some 3 ml cartridges use a shorter, roughly 8 mm plunger; the glass looks identical, but plunger height differs between cartridge types. We haven't tested other manufacturers' pens, so check plunger length yourself before assuming compatibility.
Glass cartridges and dead volume
Cartridge manufacturing variances
The cartridge is where most precision is lost. Standard 3 ml glass cartridges have a manufacturing tolerance of ±0.1 ml on total capacity. That means a cartridge labeled "3 ml" might actually hold anywhere from 2.9 to 3.1 ml. When accuracy matters, you need to measure your actual fill, not trust the line.
Which cartridges fit the pen
Our pens are built for standard 3 ml glass cartridges with an 11 mm long plunger (stopper) — the cartridge we sell. Some 3 ml cartridges on the market are made with a shorter plunger, about 8 mm, and from the outside the glass looks identical. A pen's dial mechanism is calibrated for one plunger travel distance, so a cartridge built for the other height will not travel the correct distance, even though it screws in and looks right. If you source cartridges elsewhere, check the plunger height before buying, not just the volume printed on the glass. We haven't tested our pens or cartridges against other manufacturers' hardware, so we can only speak to what our own system is built for — not whether it fits outside it.
Understanding dead volume
Dead volume is the bigger problem. This is the amount of diluent that stays trapped in the cartridge, the needle hub, and the pen barrel after you depress the plunger to your target mark. A typical cartridge-and-pen system retains 0.08 to 0.15 ml of dead volume depending on the brand. If you set the dial to 1 ml but 0.1 ml stays behind, your vial actually gets 0.9 ml.
Most researchers don't account for this. They set the dial, inject, and assume the math is exact. It isn't. The gap between what's dialed and what reaches the vial is the dead volume itself, a fixed mechanical variable tied to pen and cartridge design, not something the dial display reflects. More precise pens have lower dead volume by design, with shorter needle hubs and tapered barrel interiors that push more liquid out on each stroke.
The mistakes that wreck your accuracy
1. Rushing the draw
The most common error is rushing the draw. If you pull the plunger back quickly, you create microbubbles in the cartridge that take up space without registering on the volume line. Draw slowly, let the liquid settle, and tap the barrel to release trapped air before setting your mark.
2. Ignoring temperature differences
Another mistake is ignoring temperature. Bacteriostatic water stored at 4°C is significantly more viscous than at room temperature. It draws slower and can cling to the cartridge walls, making your volume reading inaccurate. Let your diluent equilibrate to room temperature before reconstituting.
In a lab setting, precision means the difference between what you set the dial to and what actually comes out.
3. Using the wrong needle gauge
Using the wrong needle size also hurts. A 22-gauge needle draws thick but deposits cleanly. A 30-gauge needle minimizes needle-prick damage to septa but draws slowly and creates more friction against the cartridge walls, which affects the stop position. For standard reconstitution, a 25-gauge needle hits the sweet spot between flow rate and mechanical accuracy.
4. Using a mismatched cartridge
Not every 3 ml glass cartridge is built the same, and this is an easy mistake to miss. Our pens are designed around standard 3 ml cartridges with an 11 mm long plunger (stopper). A second common format uses a shorter plunger, around 8 mm. The dial and drive mechanism are calibrated for a fixed travel distance, so the two plunger heights are not interchangeable. The glass itself looks identical from the outside, so the plunger length is the detail that matters. If you ever source cartridges elsewhere, check for the 11 mm long plunger before loading one into your pen.
What actually works
Best practices for bench precision
For genuine precision, use a metal pen with a verified calibration certificate. When concentration math matters, weigh your fill on an analytical balance—1 ml of water weighs exactly 1 gram—catching volume errors and trapped air alike.
Track dead volume by measuring what remains in the cartridge after each use, then build that into your reconstitution math.
Matching the tool to your requirements
For routine work where ±5% is acceptable, a quality plastic pen with a 3 ml cartridge is enough—know its limits. Where a few micrograms matter, or wasted peptide hits the budget, a metal pen earns back its cost in accuracy over time. The tool doesn't make you precise; knowing what it does is what does.
Do the cartridges work with other pens, and which cartridges fit the pens?
Our pens take universal 28G-33G screw-on pen needles and standard 3 ml glass cartridges with the 11 mm long plunger we sell. Some 3 ml cartridges use a shorter, roughly 8 mm plunger instead, so plunger length must match the pen. The glass looks identical from outside, so confirm any cartridge sourced elsewhere has the 11 mm plunger. We haven't tested fit with other manufacturers' pens.
Frequently asked questions
How accurate is a typical peptide pen?
Quality metal pens hold ±0.05 ml tolerance; cheap plastic pens can drift to ±0.15 ml or more.
What is dead volume in a peptide pen?
Dead volume is diluent left in the cartridge, needle hub, and barrel after injection, typically 0.08 to 0.15 ml.
Metal vs plastic peptide pen: which is more precise?
Metal pens have tighter sealing tolerances and longer durability; plastic insulates better in cold rooms but degrades faster.
Related from our lab: the pen · cartridges · bacteriostatic water · reconstitution calculators
Shared by PreppinPeppers for research, educational, and demonstration awareness only. We link to third-party coverage; we do not endorse it, and nothing here is medical advice or a recommendation to use any substance in humans or animals. Our products are sold for laboratory research use only.
More in our reusable reconstitution pens collection.
What the research community gets wrong about peptide pen precision
- "Precise" is a label word, not a measured number. When researchers weighed what pen injectors actually delivered, every pen put out less volume than the dial was set to, and the miss was biggest at the smallest settings. Your tiniest draws are the ones to trust least.
- Dead volume is built into the hardware, not caused by sloppy hands. Studies that measured the liquid trapped in syringe and needle systems found it changes with the shape of the needle hub and barrel. You cannot push it out with better technique. Measure it once for your setup, then add it to your reconstitution math.
- A calibration certificate only describes the pen when it was new. Reviews of pen performance list many things that shift over a device's working life (mechanical wear, materials, handling). A pen that met spec out of the box can drift. Re-check it, do not assume.
- The printed line on a cartridge is not a measurement. Total-capacity tolerance means a "3 ml" cartridge may hold a little more or a little less. When the concentration matters, weigh the fill on a balance (1 ml of water weighs about 1 g) instead of reading the mark.
- "Metal is always more precise than plastic" is too simple. The real trade-off is seal fit, how the material holds up to temperature, and wear over many uses. The right pick depends on your bench conditions, so verify your own pen rather than trusting the material alone.
- Cartridge fit is a precision question, not a cosmetic one. Not every "3 ml" glass cartridge is built the same: the design we use has an 11 mm long plunger (stopper) matched to our pens, but 3 ml cartridges with a shorter plunger, around 8 mm, also exist on the market, and the glass looks identical from the outside. A pen is machined for one plunger height, so plunger and pen need to match regardless of what the label says. If you source cartridges elsewhere, check the plunger length before you trust the capacity number. Needles are a simpler link: our pens take universal 28G-33G screw-on pen needles, so gauge is rarely where a fit problem starts.
From our bench: Here is a test worth running yourself. Dial your pen to exactly 1.0 ml, dispense into a tared vial on an analytical balance, and record the weight in grams (water sits close to 1 g per ml, so the reading tells you the real delivered volume).
Repeat it a few times with the same cartridge and with your diluent equilibrated to room temperature, then send us your readings. Real numbers from your own setup help every researcher calibrate their expectations, and we will never publish invented figures.
Sources
- Malerba et al., J Vet Intern Med 2021: The accuracy and precision of insulin administration using human and veterinary pen-injectors and syringes for administration of insulin
- Sparre et al., J Diabetes Sci Technol 2023: Factors Affecting Performance of Insulin Pen Injector Technology: A Narrative Review
- Bohannon, Postgrad Med 1999: Insulin delivery using pen devices. Simple-to-use tools may help young and old alike
