Your peptide pen is losing volume on every click

If you're sourcing a peptide pen in the USA, the barrel material and glass cartridge quality together determine how much of your reconstituted sample actually reaches your tube, and how reproducibly. Get those two factors right, and your reconstitution math holds up. Get them wrong, and the error is invisible until your data doesn't replicate.

A peptide pen is a handheld dispenser, shaped like a thick marker, that meters out set volumes of reconstituted peptide solution from a refillable cartridge via a click-dial plunger. Each click advances the plunger a fixed mechanical distance. In theory it's simple. In practice, the tolerance at every joint in that mechanism determines whether you can trust the number on the dial.

Metal vs Plastic Barrel: The Difference That Shows in Your Data

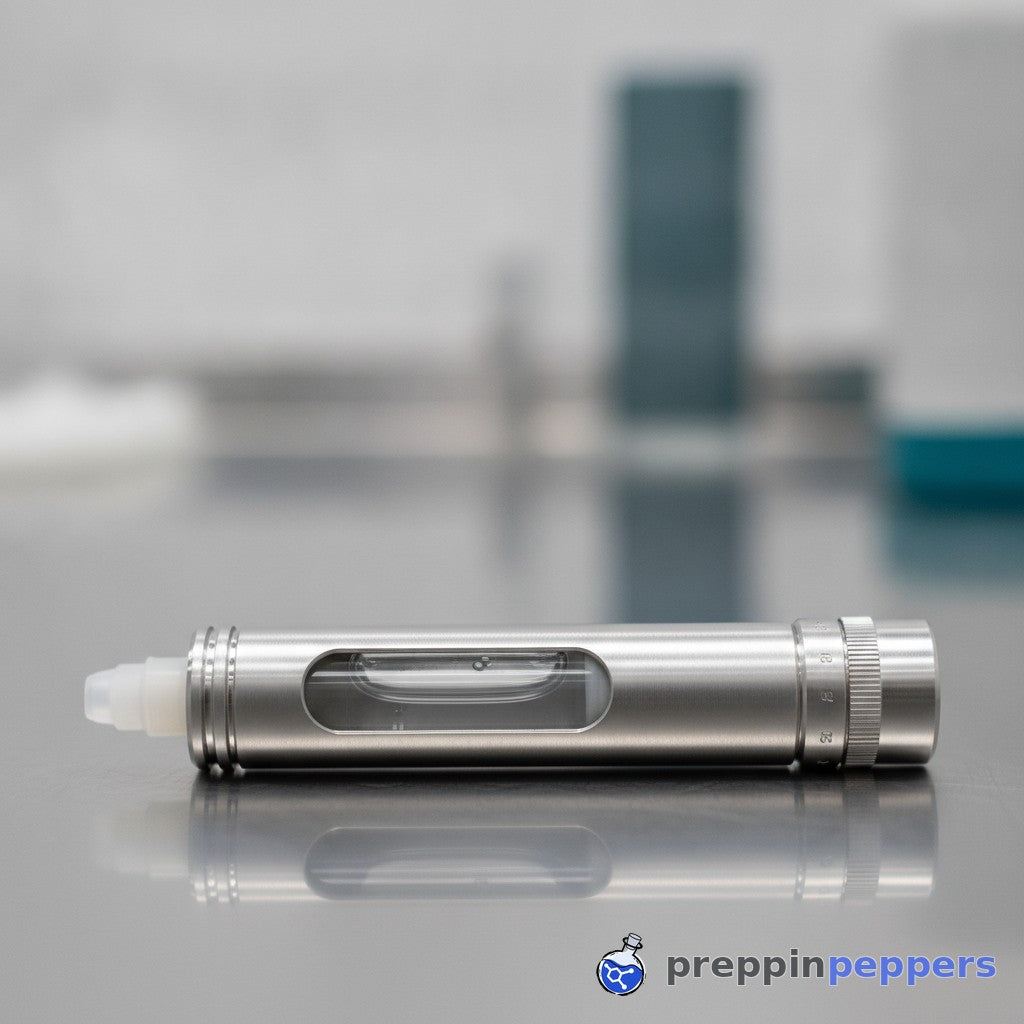

Most peptide pens sold in the USA use a plastic body. A machined metal barrel, usually aluminum or stainless steel, is less common and worth the difference in price for repeated bench use.

A plastic barrel flexes slightly under thumb pressure when you depress the plunger. That flex means the plunger doesn't always travel exactly the same distance per click. Small errors per stroke become meaningful errors across a day of samples. Flex also creates micro-gaps where the cartridge seats against the barrel, which introduces air bubbles into the line.

A metal barrel doesn't flex. The cartridge seats the same way every time. That mechanical consistency is why pharmaceutical fill-and-finish manufacturing uses metal-bodied dispensers, and it's the right standard for research bench work too.

There's also a contamination variable with plastic. Lower-grade polyethylene and polypropylene can leach plasticizers into aqueous solutions, especially slightly acidic or basic ones. Peptide solutions and bacteriostatic water both qualify. A metal barrel removes that variable entirely.

Glass Cartridge Tolerances and What They Mean for Reproducibility

A 3 ml glass cartridge is a tube with a rubber plunger stopper at one end and a crimp seal at the other. The inside diameter of the tube controls your measurement accuracy, and that diameter varies between cartridge manufacturers based on how tightly they hold their manufacturing tolerances.

Tighter inside-diameter tolerance means the volume advanced per plunger stroke is consistent across cartridges and across the length of any single cartridge. Looser tolerance means the same dial setting delivers slightly different volumes depending on where you are in the cartridge, because the wall isn't perfectly uniform. For research where you're comparing samples across multiple draws or time points, that variation is a real problem.

Type I borosilicate glass is the pharmaceutical standard for cartridges. It's chemically inert, meaning it won't react with your diluent or your peptide. Type II and Type III glass are more reactive. If a supplier doesn't specify glass type, don't assume Type I. Factor that chemical uncertainty into how you store and use those cartridges.

Dead Volume: The Volume You Dial That Goes Nowhere

Dead volume is the liquid that stays trapped in the needle hub and cartridge tip after each stroke. Think of it like the bit of condiment that stays in the nozzle after you squeeze the bottle. You applied pressure, but that portion didn't go anywhere useful.

In a standard peptide pen, dead volume in the tip and needle hub runs roughly 5 to 20 microliters depending on needle gauge and hub geometry. If your protocol targets 50 microliter samples, that dead volume represents 10 to 40 percent of your target sitting in the tip instead of in your collection tube. Your dial says you delivered 50 microliters. Your tube doesn't have 50 microliters.

Two concrete fixes. First, prime the pen at the start of each session with a small forward stroke to fill the dead volume, and discard that prime. After priming, subsequent strokes deliver more accurately because the tip is already full. Never count the prime stroke as a sample. Second, on your first use of any new pen or new cartridge lot, verify delivered volume by pipetting the output onto a tared analytical balance, calculating the volume from density, and comparing to your dial setting. Do it once, get a correction factor, apply it going forward.

Diluent Choice and Practical USA Sourcing Notes

Bacteriostatic water, which contains 0.9 percent benzyl alcohol as a preservative, is the correct diluent for most peptide reconstitution protocols. The benzyl alcohol suppresses microbial growth inside an opened vial. A reconstituted peptide vial is a nutrient-rich aqueous environment that bacteria find hospitable, and repeated needle punctures over days or weeks introduce contamination risk that sterile water alone can't address.

Sterile water without benzyl alcohol works for single-draw, single-use reconstitutions only. For any multi-draw protocol, bacteriostatic water is the right call.

For USA-based researchers, domestic sourcing has two specific advantages. Cold-chain integrity is better over shorter transit distances with fewer handoffs and temperature excursions. And USP (United States Pharmacopeia) grade certification, which defines purity and testing standards, is easier to verify from a domestic supplier than from overseas sources using different or unspecified standards.

When evaluating any peptide pen hardware from a USA supplier, ask for these numbers specifically:

• Glass cartridge type and inside-diameter tolerance specification
• Barrel material and internal finish or coating
• Dead volume specification for the included tip or needle hub
• Click-to-volume ratio with stated accuracy tolerance

A supplier who answers those questions with actual numbers is giving you information. One who responds with phrases like "pharmaceutical grade" and no supporting spec sheet is giving you a sales pitch. The numbers are what you bring to the bench; the adjectives aren't.

For repeated bench use, a reusable metal pen with a 3 ml Type I borosilicate glass cartridge and tight plunger tolerances is the configuration that earns trust over a full research run. It's also the one that holds up when a collaborator tries to reproduce your protocol six months later and needs the same delivery accuracy you had.

Frequently asked questions

What is dead volume in a peptide pen and how do I correct for it?

Dead volume is liquid trapped in the tip and needle hub that never gets delivered. Prime the pen before use to fill the dead space, and verify actual delivered volume with a balance and calibrated calculation on first use of any new pen or cartridge lot.

Why use bacteriostatic water instead of sterile water for reconstituting peptides?

Bacteriostatic water contains 0.9% benzyl alcohol, which inhibits microbial growth in vials that are punctured multiple times. Sterile water without benzyl alcohol is only appropriate for single-use, single-draw reconstitutions.

What glass type should a peptide pen cartridge be made from?

Type I borosilicate glass is the pharmaceutical standard. It is chemically inert and will not react with bacteriostatic water or peptide solutions. Always confirm glass type with your supplier before use.

Related from our lab: the pen · cartridges · bacteriostatic water · reconstitution calculators

Shared by PreppinPeppers for research, educational, and demonstration awareness only. We link to third-party coverage; we do not endorse it, and nothing here is medical advice or a recommendation to use any substance in humans or animals. Our products are sold for laboratory research use only.

More in our reusable reconstitution pens collection.

What the research community gets wrong about peptide reconstitution pens

• Treating "pharmaceutical grade" as a spec. That phrase is marketing, not a number. What actually predicts bench performance is the stated click-to-volume accuracy tolerance, the glass type, and the inside-diameter tolerance of the cartridge. If a listing gives you adjectives instead of figures, you have no way to check the pen against your own measurements.
• Trusting the dial as the delivered volume. The number you dial is a mechanical setting, not a guarantee of what lands in the tube. Dead volume trapped in the tip and needle hub means the delivered amount is usually smaller than the dial reads. The gap stays invisible until a result fails to repeat.
• Skipping the prime stroke to "save" solution. The first stroke from a dry tip mostly fills the dead space, so early draws come up short. Priming and discarding that small volume is part of getting consistent draws, not waste.
• Assuming every glass cartridge is inert. Only Type I borosilicate is the low-reactivity pharmaceutical standard. Type II and Type III glass react more. If a supplier will not state the glass type, do not assume it is Type I when you plan storage and contact time.
• Mixing up bacteriostatic and sterile water for multi-draw work. Sterile water has no preservative, so it suits single-draw, single-use reconstitution only. For a vial you puncture repeatedly over days, bacteriostatic water (0.9% benzyl alcohol) is the diluent that suppresses microbial growth between draws.

From our bench: Next time you open a new pen or a new cartridge lot, dispense a dialed volume onto a tared analytical balance, convert the mass to volume using the solution density, and compare it to the dial setting. Tell us the correction factor you measured, which barrel material and glass type you used, and whether priming first changed the result. We will add real, attributed numbers to this page as researchers report them.
