Your Peptide Pen's Dead Volume Is Costing You Real Money

What it is

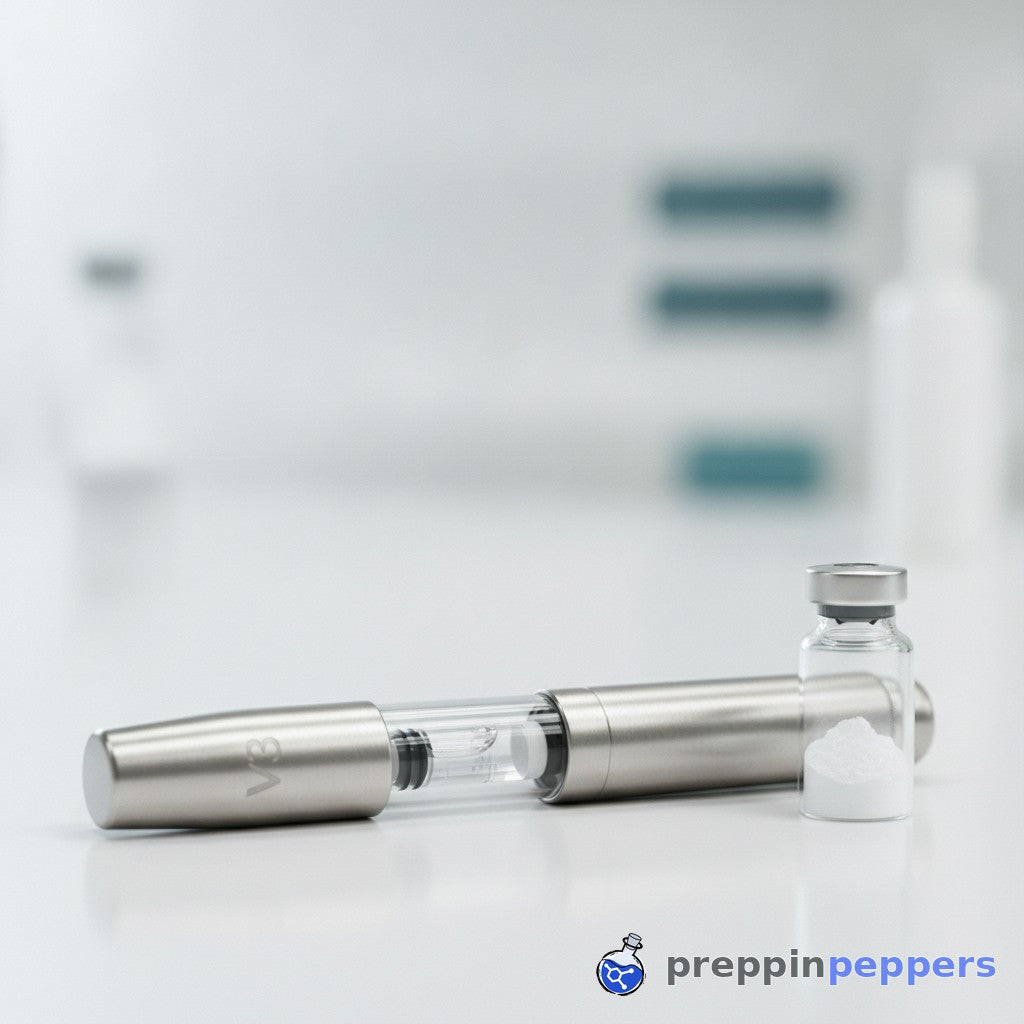

The v3 peptide pen is a reusable aluminium-alloy pen body for bench work with lyophilized peptides — freeze-dried powder you reconstitute, load into a cartridge, and then meter out in repeatable volumes. One metal body and a draw-and-push plunger replace the disposable-plastic pen format.

What the pen accepts

• Cartridges: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. No competitor discloses this.
• Needles: universal 28G–33G screw-on pen needles — no single-supplier lock-in.

Fit we can confirm: our own pen-and-cartridge system only. We have not tested other manufacturers' pens, so we cannot say whether our cartridges seat in a third-party device, or theirs in ours.

It is not a disposable pen, not a prefilled device, and not a source of any substance; we sell the hardware and reconstitution materials, not peptides.

Everything the rest of this article measures — dead volume, cartridge tolerance, metering accuracy — starts here, with a metal body gripping a glass cartridge and a plunger you draw back and push.

Why a Metal Body Beats Plastic for a Reconstitution Pen

Most peptide pens on the market are injection-molded plastic. Plastic introduces three mechanical failure modes you do not want in a precision instrument:

• They absorb and leach trace organics.
• They flex under load. Every time a plastic pen's mechanism drives the plunger, the housing takes the load. After a few hundred cycles, plastic housings develop micro-deformation that changes stroke length.
• They crack at the cartridge seat. Plastic fatigue at the point where the glass cartridge seats means a lost seal and lost accuracy.

Aluminium-Alloy Construction

The v3 body is aluminium alloy, not molded plastic. It does not absorb diluent, it does not flex the way a molded housing does, and the cartridge seat stays put across repeated fills. A loaded v3 also feels planted in the hand, which matters for steady control at small volumes.

Which cartridges fit the pen?

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. Most listings skip this spec, and it is the most common reason a cartridge will not load.

Needles are simpler: our pens take universal 28G–33G screw-on pen needles.

Do the cartridges work with other pens too?

Our cartridges are a standard 3 ml glass format, but we have only tested them in our own pens. We cannot speak to another manufacturer's seating depth or tolerances.

Glass Cartridge Tolerances and the Dead Volume Problem

Dead volume is the reconstituted liquid left trapped in the cartridge tip and internal channel once the plunger reaches its full stop. You cannot eject it. It stays behind on every fill cycle, so the question is only how much — and that depends on cartridge geometry, not on technique.

What 3 ml Glass Cartridges Actually Measure

Most 3 ml glass cartridges land between 0.08 ml and 0.15 ml of dead volume, set by the internal geometry of the tip channel. Our v3 pen is built around cartridges closer to 0.06 ml.

Seating is a separate tolerance problem, and it comes down to two specs:

Compare

Spec	What our pens accept
Cartridge body	Standard 3 ml glass
Plunger (stopper)	11 mm long plunger
Needle interface	Universal 28G–33G screw-on pen needles

Stopper length is the spec most cartridge listings omit, and it is the one that decides whether a cartridge seats at all. We have not tested our cartridges in other manufacturers' pens, so we speak only to fit on our own platform.

Calculating the Real-World Cost

Take a peptide at $9 per milligram: 5 mg reconstituted with 1 ml of diluent gives 5 mg/ml. Each 0.1 ml of dead volume therefore holds 0.5 mg — $4.50. Fill and eject five cartridges a week and that is 260 fills a year, over $1,100 of material parked in cartridge tips. Dropping from a 0.15 ml cartridge to a 0.09 ml cartridge saves roughly $2.70 on every fill.

The Role of Diluent Viscosity and Temperature

Dead volume is not a fixed number for a given cartridge. A more viscous diluent leaves slightly more behind in the channel, and bacteriostatic water with 0.9% benzyl alcohol sits above pure water on that scale. Let your diluent reach room temperature before filling cartridges rather than drawing it refrigerator-cold.

Key point: Dead volume is not a fixed spec — diluent viscosity and temperature shift tip retention, and that variance compounds into material and financial waste across repeated fills.

Draw-and-Push Metering: Where Most of Your Accuracy Lives or Dies

The metering mechanism is the core of any peptide pen. On the V3 it is draw-and-push: pulling the end knob out sets the volume against the graduated scale and unit counter window (0.01 ml per unit, up to 60 units or 0.60 ml per draw), and pushing it back in drives the plunger that distance into the cartridge. The volume delivered is knob travel across the cartridge bore.

Three factors decide whether it holds:

• Full, straight knob travel
• A scale read at eye level
• A cartridge seated flush against the plunger

Lose one and the draw becomes your single largest error source.

Ghost Clicking on Click-Dial Pens (Other Brands)

Cheap click-dial pens from other brands use a stamped metal detent with plastic spring arms. Over time the arms weaken and the dial starts to ghost click — moving past a detent without a firm stop. The V3 has no detent to wear; it is draw-and-push.

On those pens the volume setting drifts: set 0.25 ml and get 0.23 ml or 0.27 ml — an 8% swing at the low end that changes click to click and does not average out across a sample series. On a draw-and-push pen the equivalent error is a knob pulled a fraction past the line, so read the scale at eye level.

Repeatable Mechanical Metering

The v3 is draw-and-push: you draw the volume by pulling the end knob out against the graduated scale, then push it in to dispense, so each draw reads directly off the scale.

Verify it at the bench: fill a cartridge with bacteriostatic water, draw 0.50 ml (50 units on the scale), push it out into a graduated cylinder, and read the volume. Ten cycles. A good pen holds within 0.02 ml of target.

What the Plunger Pushes Against

The scale only reads true if the plunger meets the stopper where the mechanism expects it. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. No competitor discloses this.

Our pens also take universal 28G-33G screw-on pen needles. We have not tested our hardware in other manufacturers' pens, so we make no fit claims beyond our own carrier.

Avoiding Draw Overshoot

Pulling the knob past your target and nudging it back is the classic draw-and-push mistake: the correction leaves the knob a fraction off the line you meant to read.

Set the volume in one steady pull and read it before you push. If you overshoot, push the draw out into a waste container, return the knob to zero and set it again.

Diluent Choice Directly Affects Your Pen's Performance

Viscosity is the variable that links your diluent to the pen. Thicker liquid flows more slowly through the cartridge channel, so more volume stays behind after each stroke — and that leftover is your dead volume, which is what eats metering accuracy.

• Bacteriostatic water (0.9% benzyl alcohol): The common lab choice, with low viscosity and predictable flow. The benzyl alcohol is there as an antimicrobial preservative if the same septum gets punctured across multiple draws. Whether it interacts with any particular peptide is compound-specific — a solution-chemistry question, not a hardware one.
• Acetic acid solutions: Sometimes used where a peptide resists dissolution in plain water. Noticeably more viscous, so expect higher residual volume and less repeatable metering at small dispense volumes.
• Plain sterile water, no preservative: Lowest viscosity and the cleanest flow, but no antimicrobial protection. Over repeated draws from one cartridge, that raises contamination risk at the septum.

Skip saline and other salt-containing buffers unless your protocol calls for them. As liquid evaporates at the tip, salt micro-crystals can form in the channel and abrade the glass bore, degrading metering accuracy over time.

Making the V3 Part of a Repeatable Bench Routine

A precision pen pays off on day one hundred, when today's sample has to line up with January's. Fixing the hardware removes a variable you would otherwise re-introduce every session.

Cartridge Fit: Check It Before You Load

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We test our own pen-and-cartridge pairing only, so we can't speak to other manufacturers' pens or cartridges.

Maintenance and Storage Habits

• Flush the cartridge with a small volume of bacteriostatic water after each use cycle.
• Wipe the exterior of the pen barrel and let it dry before storage.
• Remove the cartridge before storing the pen. Leaving one loaded for weeks keeps the plunger pressed on the stopper and strains the seal; take it out and the pen holds its calibration longer.

Repeatable bench work is a stack of small decisions made the same way every time. The V3 takes one variable off that stack.

What the research community gets wrong about peptide reconstitution pens and dead volume

Dead volume is not a spec you inherit; it is a number you measure. And the cartridge that feeds the pen is a defined geometry, not any 3 ml glass cartridge.

• They treat dead volume as a fixed spec. The figure on a cartridge box is a starting point, not a promise: dead volume shifts with diluent viscosity and temperature. Measure it under your own bench conditions.
• They assume any 3 ml glass cartridge will seat. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. That one dimension decides whether a cartridge works at all, and no competitor discloses it. Our pens also take universal 28G-33G screw-on pen needles.
• They ask whether the cartridges work in other pens. We have not tested other manufacturers' pens, so we cannot confirm fit beyond our own hardware. Treat cross-brand compatibility as untested until someone measures seating and delivered volume on that pairing.
• They assume a metal body automatically means accuracy. Material resists wear, but repeatability comes from a flush cartridge seat, full knob travel and reading the scale the same way every time. Verify by pushing a set draw into a graduated cylinder.
• They correct an overshoot by nudging the knob back. On a draw-and-push pen a partial correction is easy to misread, and on other brands' click-dial pens a click back often does not undo a click forward. Push the overshoot out to waste, return to zero and set the draw again.
• They blame the hardware for scatter that is really handling. Foaming and air/liquid interfaces during transfer disturb a peptide in solution; controlled work shows interfaces drive protein aggregation more than shear alone (Duerkop et al., 2018).
• They think bacteriostatic water is just water. It is sterile water with benzyl alcohol as a preservative (FDA/DailyMed label, 0.9 percent). That changes viscosity and flow, which changes dead volume, so diluents are not interchangeable at small volumes.

From our bench: if you run a v3 pen with 3 ml glass cartridges, help us build a real dataset. Fill a cartridge with room-temperature bacteriostatic water, draw 0.50 ml (50 units), push it into a graduated cylinder, and repeat for ten cycles. Send raw numbers (no rounding) plus the cartridge lot and fill-cycle count, and we will publish the aggregate ranges.

Sources

Correction (2026-10-03): An earlier version said some plastics leach chemicals into peptide solutions or react with diluents such as bacteriostatic water. No source we can cite supports that as stated, so it was removed; neither glass nor plastic is perfectly inert.
