If your pen is under- or over-delivering, check fit before technique. Our hardware is built around two fixed specs:
- Pen needles: universal 28G–33G screw-on needles.
- Cartridges: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We have not tested our pens with other manufacturers' cartridges or pens, so we can't confirm cross-brand fit either way. Before assuming a hardware fault, confirm your cartridge's stopper length and needle thread match these two specs.
What it is
Key takeaways
- Cartridge fit: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
- Needle fit: accepts universal 28G-33G screw-on pen needles, not a proprietary format.
- Cross-brand fit: untested.
- Build: a machined metal housing is more rigid than molded plastic, the core structural difference in the v4 design.
In this article

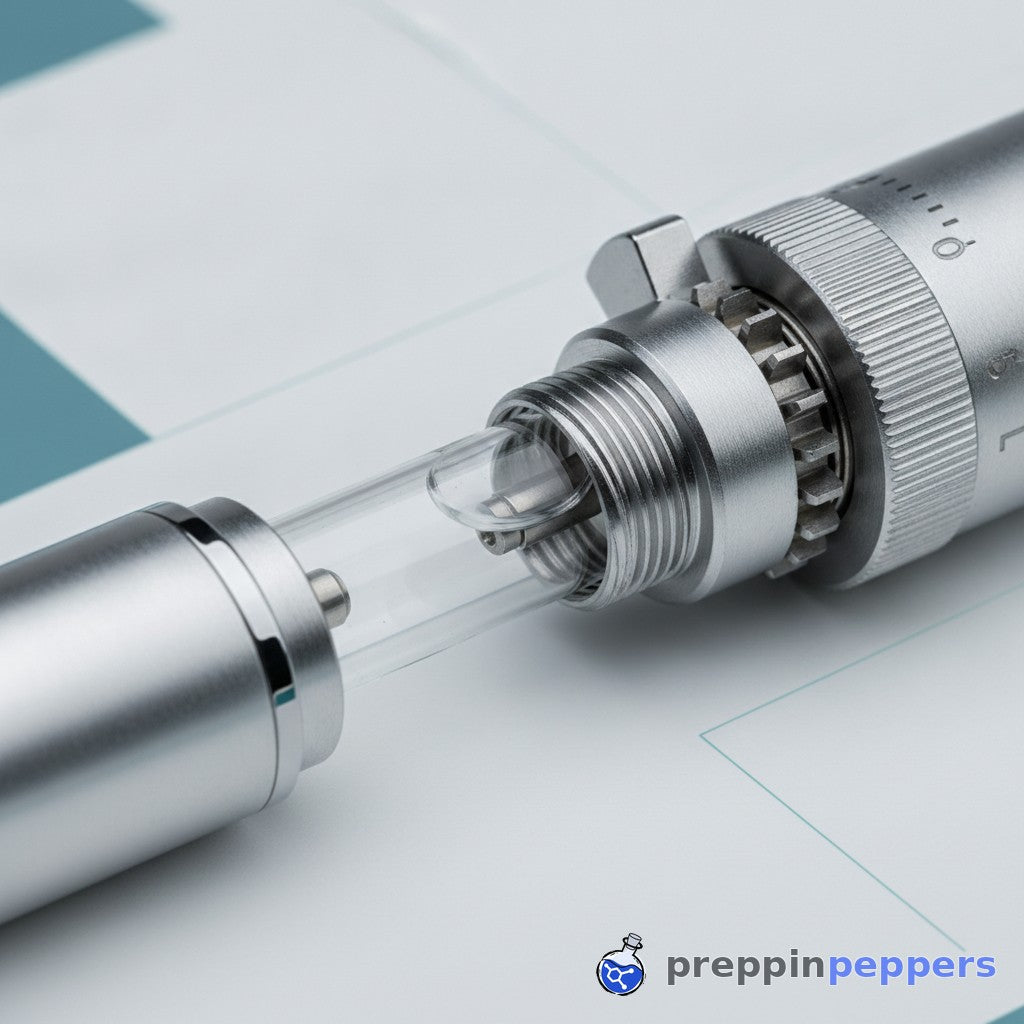

A v4 peptide pen is a reusable, dial-a-dose dispensing tool. It holds a 3 ml glass cartridge and clicks out measured units on each dial turn, letting a researcher pull a set, repeatable volume from the same cartridge across multiple uses rather than drawing fresh from a vial each time.
Which cartridges fit the pens? Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. If you're unsure what stopper length a cartridge uses, check with whoever supplied it first.
Do the cartridges work with other pens too? We only test our own hardware against our own hardware, so we can't say whether our cartridges seat in a pen from another manufacturer, or whether a third-party cartridge seats in ours. No competitor publishes their own stopper-length spec, which makes cross-checking hard. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
Metal vs plastic: the tolerance gap that ruins repeatability
Key numbers
Housing flex and volume loss
Most low-cost peptide pens use a plastic housing. Plastic flexes. Every time the dose button is pressed, the housing itself absorbs a small amount of that force before the plunger actually begins to move. That absorbed flex is metered volume you never get.
Across a 30-day research cycle, that means the pen is not delivering the same metered volume click to click - which means your sample group is not receiving a consistent input, and your dataset inherits that inconsistency.
Why machined metal holds tolerance
The PreppinPeppers v4 body, plunger rod, internal threading, and dose-stop collar are machined from metal, not molded from plastic. Machined parts hold tighter dimensional tolerance than injection-molded plastic, and metal does not flex the way plastic does under repeated button pressure. Dial the same click setting twice, and the plunger travels the same distance twice. That consistency is what turns a pen into a measurement instrument rather than an approximate one.
Thread wear changes the number over time
Plastic threads are molded, and molded threads wear. After roughly 40 to 50 refill cycles, plastic threads round off and click detents soften, so volume per click drifts without any visible sign. Your last cartridge in a worn plastic pen is not metering the same volume as your first cartridge did. Machined metal threads resist that wear over the pen's working life, so the click-to-volume relationship stays fixed refill after refill.
Glass cartridge tolerances and dead volume
Which cartridges fit
Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
We have not tested cartridges from other manufacturers, so we can't confirm whether any given third-party cartridge shares this stopper spec. Check stopper length before loading one.
Type I borosilicate glass
Not all 3 ml cartridges are made the same. The Prepp cartridge uses Type I borosilicate glass, which matters for two reasons:
- The inner diameter is consistent within a few microns.
- Borosilicate leaches fewer ions into your diluent than soda-lime glass.
Peptides stick to charged surfaces. A cheap cartridge with more sodium in the glass wall will bind more peptide over 30 days.
Monitoring dead volume
Dead volume is the liquid left in the cartridge after the plunger bottoms out. In a correctly seated cartridge with a flat plunger face, dead volume should be under 0.05 ml.
You can check yours easily. When your pen stops clicking, unscrew the cartridge and pull the remaining liquid into a 1 ml syringe. If you get more than 0.1 ml, your plunger is not advancing fully—almost always a plastic pen body problem.
Bacteriostatic water is the whole game
You can reconstitute peptides with sterile water, but they degrade faster. Bacteriostatic water contains 0.9% benzyl alcohol, added as a bacteriostatic preservative (FDA label for Bacteriostatic Water for Injection, USP). Plain water lets some peptides aggregate, and aggregated peptide is not just less active, it is a different molecule; your assay ends up measuring something else entirely.
Store bacteriostatic water cold, but not frozen. A vial kept at 2 to 8 degrees Celsius after opening holds its benzyl alcohol potency for about 28 days.
That's the dimension that matters: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
Color shifts matter too. GHK-Cu's blue color comes from bound copper; if a reconstituted vial fades toward clear, that copper-peptide complex has broken down in solution, not just faded cosmetically. Treat a faint alcohol smell and an unexpected color change the same way: discard the vial before it costs you a clean reading.
Reconstitution technique that actually preserves the peptide
Gentle addition and mixing
Peptide powder is fragile. It sits as a lyophilized puck at the bottom of the vial. When you add bac water, do not squirt it directly onto the puck — impact shear can damage the peptide structure.
Angle the vial and let the water run down the inside glass wall. Swirl gently and do not shake. Shaking whips air bubbles through the solution, which denatures peptides at the air-water interface.
Dissolution time
After reconstituting, let the vial sit for 5 minutes at room temperature. The peptide needs time to fully dissolve into a uniform solution.
Drawing it up immediately into the cartridge gives you a solution that has not fully dissolved. The first fill will read under-concentrated and the last over-concentrated — a common cause of concentration readings that do not match between fills from the same vial.
Solution stability after mixing
Some diluents include benzyl alcohol as a preservative to extend how long an opened vial stays usable, but it can speed degradation in peptide structures that are sensitive to it. Check the peptide's data sheet before choosing a diluent, and treat a preservative-free reconstitution as single-use.
Copper-binding peptides such as GHK-Cu get their blue-green color from the copper complex itself. A vial fading toward clear after reconstitution signals that the complex has broken down, whether from oxidation, light exposure, or a temperature swing in storage. Treat a color change as a cue to review handling and storage conditions, not something to draw around.
Cartridge loading
When you fill the cartridge, pull the solution into a sterile syringe with a blunt fill needle. Insert the needle through the back of the cartridge and push the plunger as you withdraw the needle to avoid air bubbles.
An air bubble in a cartridge pen does not just waste 0.05 ml. It sits against the stopper and changes the pressure dynamics of every single click.
What most researchers get wrong about the v4 pen
- Over-priming: They prime the pen with 2 or 3 units and waste peptide every time. Prime once when you install a fresh cartridge; after that, the needle is already full.
- Horizontal storage: They store the pen horizontally, causing the cartridge plunger to settle. Store it vertically, needle down, to keep liquid against the stopper and prevent air migration into the dose chamber.
- Dialing backwards: They dial past the target and dial back. The click mechanism has backlash. If you pass 4 clicks and dial back to 3, your actual dose is somewhere between 3 and 4. Dial up only; if you pass your target, empty the dose and start again.
- Leaving cartridges installed: They leave the cartridge in the pen for weeks between cycles. The metal plunger rod exerts constant pressure on the stopper, compressing it over days and changing the volume-per-click. Remove the cartridge and cap it when the pen is idle.
- Loading a mismatched cartridge: Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
- Ignoring temperature effects: They assume every click is calibrated identically. The v4 pen delivers 0.01 ml per click for water at 20 degrees Celsius. Cold peptide solution is slightly more viscous, causing an under-dose of about 3 percent if dialed straight from the fridge. Let the pen sit at room temperature for 10 minutes before dialing.
A v4 pen is a precision tool when you treat it as one. Use a metal body, glass cartridges, fresh bac water, and slow reconstitution technique. The hardware is simple; the errors are all in how you handle it.
Frequently asked questions
What is a v4 peptide pen?
A refillable, dial-a-dose dispensing tool with a machined metal body that accepts a 3 ml glass cartridge and delivers 0.01 ml of reconstituted peptide solution per click for repeatable research measurements.
Why does a metal pen body matter for peptide research?
Metal does not flex under plunger pressure, so each click advances the exact same distance.
How do I fill a v4 pen cartridge without wasting peptide?
Reconstitute gently by running bac water down the vial wall, let it sit 5 minutes, draw through a blunt fill needle, and prime once per cartridge; do not dial past your target and back.
Sources
- Bacteriostatic Water for Injection, USP , FDA/DailyMed label (0.9% benzyl alcohol)
- Bohannon, Postgrad Med 1999: Insulin delivery using pen devices. Simple-to-use tools may help young and old alike
- Jonker et al., Int J Clin Pharmacol Ther 2021: First pre-filled pen device with highly purified human menopausal gonadotropin (HP-hMG, Menopur) in liquid is shown to be bioequivalent to powder for reconstitution
- Lingen et al., Endocr Connect 2023: Advantages and disadvantages of connected insulin pens in diabetes management
Correction (2026-10-03): we removed an unsupported claim that plastic pen bodies cause 8 to 12 percent volume errors, and two unsupported statements about benzyl alcohol (that it stabilizes the peptide chain, and that it evaporates through stopper punctures). PreppinPeppers sells no "V4" pen; our pens are the V1, V2, V3 and Gansulin.
✔ Reviewed by Bryan Le, PharmD, RPh
Bryan is a licensed pharmacist (Doctor of Pharmacy, Registered Pharmacist). Reconstituting lyophilized preparations is core pharmacy practice, so he reviews The Lab’s content for technical accuracy and to keep it within a research-and-education scope, with no medical or dosing advice. View profile on LinkedIn.
Related reading
Related from our lab: the pen · cartridges · bacteriostatic water · reconstitution calculators
Shared by PreppinPeppers for research, educational, and demonstration awareness only. We link to third-party coverage; we do not endorse it, and nothing here is medical advice or a recommendation to use any substance in humans or animals. Our products are sold for laboratory research use only.
Reminder: research and educational reference only. PreppinPeppers sells hardware and materials, not peptides. Not medical, dosing, or health advice, not evaluated by the FDA, and not intended for human or animal use.
