Amber vs Clear Glass Cartridges: When Light Protection Matters

What it is

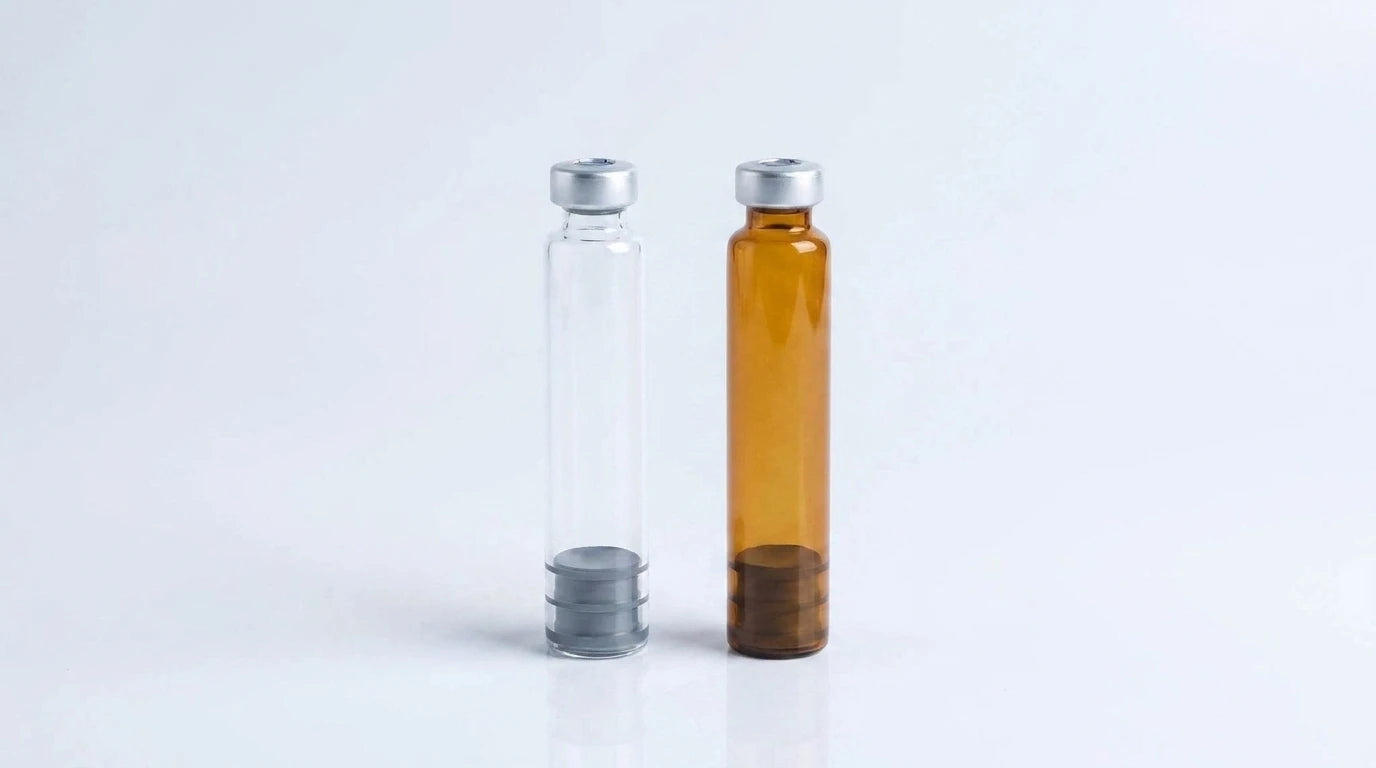

Amber and clear 3 ml cartridges are identical borosilicate formats differing only in light transmission. Amber glass blocks UV and most visible light below about 450 nm, protecting light-sensitive compounds from photodegradation, while clear allows visual inspection when stored in darkness.

Walk past any pharmacy shelf and the pattern is obvious: the products that fear light live in brown glass. The same choice exists for the standard 3 ml pen cartridge. It comes in two glasses - clear Type I borosilicate and amber Type I borosilicate - and everything else about the two is identical: dimensions, crimp cap, septum, plunger, and pen fit.

So the real question is not "which cartridge is better." It is: does the material inside your cartridge care about light, and how much light will it actually see? This article walks through the published photochemistry and the practice so you can answer that for your own bench.

How light degrades sensitive compounds

Photodegradation is a real, well-documented failure mode for peptides and proteins, and it is driven almost entirely by the short-wavelength end of the spectrum: ultraviolet light and blue-violet visible light, roughly the 290-450 nm band.

The chemistry is specific and published. Direct photo-damage concentrates on a handful of amino acid residues - principally tryptophan, tyrosine, histidine and cystine (disulfide) residues - which absorb UV and react through excited-state species and radicals; indirect damage via singlet oxygen extends the list to cysteine and methionine (Pattison et al., Photochem Photobiol Sci 2012). In peptides specifically, photosensitized oxidation measurably degrades tyrosine and tryptophan residues (Fu et al., J Photochem Photobiol B 2016). Downstream, those reactions cascade into fragmentation, cross-linking and aggregation - the mechanisms are mapped in detail in Schöneich's 2020 review of therapeutic-protein photodegradation and in Kerwin and Remmele's classic "Protect from Light" review.

A concrete, cartridge-relevant example: insulin - a peptide that spends its working life in exactly this 3 ml cartridge format. Controlled UV exposure of insulin produces covalent dityrosine dimers and broken disulfide bridges, and in the same study, muscle cells given the UV-exposed insulin showed a 61.7% drop in glucose uptake versus untreated insulin (Correia et al., PLOS ONE 2012). Light did not just change the molecule on paper; it took most of its activity with it.

• UV-B and UV-A (290-400 nm): the most energetic band ordinary indoor exposure delivers - sunlight through a window, and some fluorescent lab lighting.
• Blue-violet visible light (400-450 nm): lower energy but still absorbed by photosensitive chromophores; regulators treat it as part of the photostability question.
• Longer visible wavelengths (green through red): largely irrelevant to photodegradation for most compounds.

This is why photostability testing is a formal regulatory requirement. The ICH Q1B guideline makes new drug substances prove themselves under defined light doses - at least 1.2 million lux-hours of visible light plus 200 watt-hours/m² of UV-A - and "protect from light" labeling exists for the ones that fail (overview of the ICH test conditions).

What amber glass actually blocks

Amber borosilicate gets its color from metal oxides - chiefly iron, with sulfur or titanium depending on the recipe - added to the melt, and the color is a filter tuned to exactly the damaging band. Where clear borosilicate transmits most of the 290-450 nm region, amber glass absorbs the bulk of it (ECA Academy on the protective properties of colored glass).

This is not marketing shorthand - it is a compendial standard. USP <671>, the container-performance chapter, defines a "light-resistant container" by spectral transmission measured on a UV-Vis spectrophotometer: transmission in the 290-450 nm window must not exceed 10% (USP spectral transmission test method). Amber pharmaceutical glass is manufactured to meet that limit; clear glass does not come close. Cartridge makers like SCHOTT produce the same Type I borosilicate pen cartridges in both clear and amber for exactly this reason (SCHOTT Pharma cartridge line).

Key point: Amber does not change what the cartridge is - it is the same Type I borosilicate format with a built-in light filter for exactly the wavelengths (290-450 nm) that do photochemical damage.

Amber vs clear: the practical trade-offs

• Light protection: amber blocks most of the 290-450 nm band to the USP <671> light-resistance standard; clear transmits it. This is the entire functional difference.
• Visual inspection: clear wins. Checking that a solution is fully dissolved, particle-free and not discolored is easier through clear glass. Through amber you can still see fill level and plunger position, but subtle haze or color change is harder to judge.
• Fit and handling: identical. Same standardized outer dimensions, same 8 mm short stopper format, same crimp, so both fit the same standard cartridge pens - the Gansulin metal pen included. Nothing about your workflow changes.
• Price: amber costs slightly more - about a quarter more per cartridge - because amber Type I glass tubing costs more than clear.
• Everything else: capacity (3 ml / 300 units), pouch packaging and storage guidance are the same for both.

What an amber cartridge is good for

A cartridge that lives its whole life inside a dark refrigerator gets little benefit from amber glass - the fridge door is already the light filter. Amber matters in the gaps, whenever the cartridge is out in the light. Concretely:

Travel and transport

This is the strongest case. A filled cartridge in a carry-on, a car console, or on a hotel desk cannot be guaranteed dark storage, and daylight is the harshest common source in the 290-450 nm band. An amber cartridge carries its filter with it: no foil wrap, no improvised dark box, no worrying about the hours it sat on a seat in the sun. For anyone running a multi-week protocol away from the home bench - conferences, field sites, long trips - amber removes one whole variable from transport planning.

Time seated in a pen

Most cartridge pens have an open dose window or a translucent holder so you can read the fill level, which means the cartridge sees light every time the pen is out of a drawer - and a pen in use is out of the drawer daily, often for weeks per fill. In an amber cartridge, the contents stay filtered even while seated in the pen.

Bench time and bright rooms

A filled cartridge sitting out under lab lighting or near a window during a session accumulates exposure that clear glass passes straight through. Shared benches, south-facing rooms, and workspaces with strong overhead lighting all tilt the choice toward amber. The in-use phase is exactly where formal photostability thinking says protection matters: light exposure during handling and storage, not just long-term warehousing (Photo-Oxidation of Therapeutic Protein Formulations, 2022 review).

Slow-draw, multi-dose protocols

A 3 ml cartridge drawn down over many sessions has a long in-use life by design. The longer a single fill lives outside the vial, the more light exposure accumulates on the same material - so the slower the draw-down, the stronger the amber case.

Photosensitive contents

If the specific compound's literature flags light sensitivity - and for peptides, that flag is common because tryptophan, tyrosine, histidine and methionine residues are the photosensitive ones - the choice makes itself. When in doubt, check the primary literature for the compound in question rather than assuming either way.

If none of those apply - short bench sessions, dark storage, a compound with no light-sensitivity flag - the standard clear cartridge plus sensible dark storage covers you, and you keep the easier visual inspection.

Storage still comes first

Amber glass is a light filter, not a preservation system. It does nothing about temperature, and temperature is usually the bigger lever for stability - in-use insulin pen studies, for instance, focus on heat cycling as the dominant stress (Richter et al. on in-use pen temperature stability).

• Empty cartridges: store sealed in their pouches, clean and dry, ideally below 75°F (24°C). Do not use a cartridge from a torn, wet or damaged pouch.
• Filled cartridges: follow the stability guidance for the specific compound - typically refrigerated at 2-8°C and kept dark. Amber buys you protection during the excursions, not a pass on cold storage.
• Freezing is still off the table: it can crack glass or unseat the plunger, amber or clear.

Preppin Peppers sells laboratory hardware and consumables for research, educational, and demonstration use only. This article is general educational information about equipment and does not describe, recommend, or instruct the use of any peptide or other substance in humans or animals. Nothing here is medical advice.

Reminder: research and educational reference only. Preppin Peppers sells hardware and materials, not peptides. Not medical, dosing, or health advice, not evaluated by the FDA, and not intended for human or animal use.

Frequently asked questions

Is an amber 3 ml cartridge a different size than a clear one?

No. Both are the same standardized 3 ml / 300-unit format with the same outer dimensions, crimp and 8 mm short stopper, so they fit the same standard cartridge pens interchangeably.

What wavelengths does amber glass block?

Amber pharmaceutical glass is made to the USP <671> light-resistance limit: no more than 10% transmission between 290 and 450 nm, the UV and blue-violet band that drives photodegradation. Clear glass transmits most of that band.

Which compounds actually need light protection?

Ones whose literature flags photosensitivity. For peptides and proteins the photosensitive residues are tryptophan, tyrosine, histidine, cystine, cysteine and methionine, so sequences rich in these are the usual candidates. Check the primary literature for the specific compound.

Does amber glass replace refrigeration for a filled cartridge?

No. Amber glass only filters light. Temperature stability still depends on proper storage - typically 2-8°C and dark for filled cartridges, per the guidance for the specific compound.

Why are amber cartridges slightly more expensive?

Amber Type I borosilicate tubing costs more to produce than clear tubing, which adds roughly a quarter per cartridge at retail. The rest of the build - cap, septum, plunger, pouch - is identical.

Both glass types are in our 3 ml glass cartridges collection: the amber cartridge and the standard clear cartridge.

Sources

1. ICH Q1B - Photostability Testing of New Drug Substances and Products (FDA guidance; 1.2 million lux-hours visible + 200 Wh/m² UV-A minimum exposure)
2. Kerwin BA, Remmele RL Jr., J Pharm Sci 2007 - Protect from Light: Photodegradation and Protein Biologics
3. Pattison DI et al., Photochem Photobiol Sci 2012 - Photo-oxidation of Proteins (Trp, Tyr, His, cystine as primary UV targets)
4. Schöneich C, Pharm Res 2020 - Photo-Degradation of Therapeutic Proteins: Mechanistic Aspects
5. Photo-Oxidation of Therapeutic Protein Formulations: From Radical Formation to Analytical Techniques (2022 review)
6. Fu H et al., J Photochem Photobiol B 2016 - Degradation of Tyrosine and Tryptophan Residues of Peptides by Type I Photosensitized Oxidation
7. Correia M et al., PLOS ONE 2012 - UV-Light Exposure of Insulin: Dityrosine Dimerization, Disulphide Photolysis, and 61.7% Loss of Glucose-Uptake Activity
8. USP <671> Containers - Performance: Spectral Transmission Testing (290-450 nm, max 10% transmission for light-resistant containers)
9. ECA Academy - Protective Properties of Colored Glass Containers
10. SCHOTT Pharma - Pharmaceutical Cartridges (clear and amber Type I borosilicate glass)
11. EndoLab - ISO 13926-1 (dimensions, material and performance for glass cylinders used in pen injectors)
