Peptide Pen Dead Volume: Are You Wasting $100 of Your Vial?

What It Is

Peptide pen dead volume is the small amount of reconstituted liquid that remains trapped inside the needle and cartridge tip after a draw is completed. It is a physical property of the hardware and represents material that cannot be dispensed during bench research.

In this article

1. Why Dead Volume Is Your Biggest Cost Factor
2. Glass Cartridges: The Case for Tighter Tolerances
3. Metal vs. Plastic: A Real Trade-Off
4. The Diluent and Storage Mistakes That Ruin Good Hardware
5. Frequently asked questions
6. What the community gets wrong

Dead volume comes from two hardware variables: the needle's internal channel and the cartridge's tip geometry, neither adjustable by the operator. On a standard 3 ml cartridge it runs about 0.03 to 0.05 ml per draw, trapped in the needle bore and tip after the plunger stops.

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We have not tested other manufacturers' hardware against ours, so we cannot say whether third-party pens or cartridges fit or seal correctly.

Key point: Dead volume is a fixed hardware consequence, not a technique problem, and a residual 0.05 ml per draw can waste up to two full reconstituted vials across 100 uses.

Why Dead Volume Is Your Biggest Cost Factor

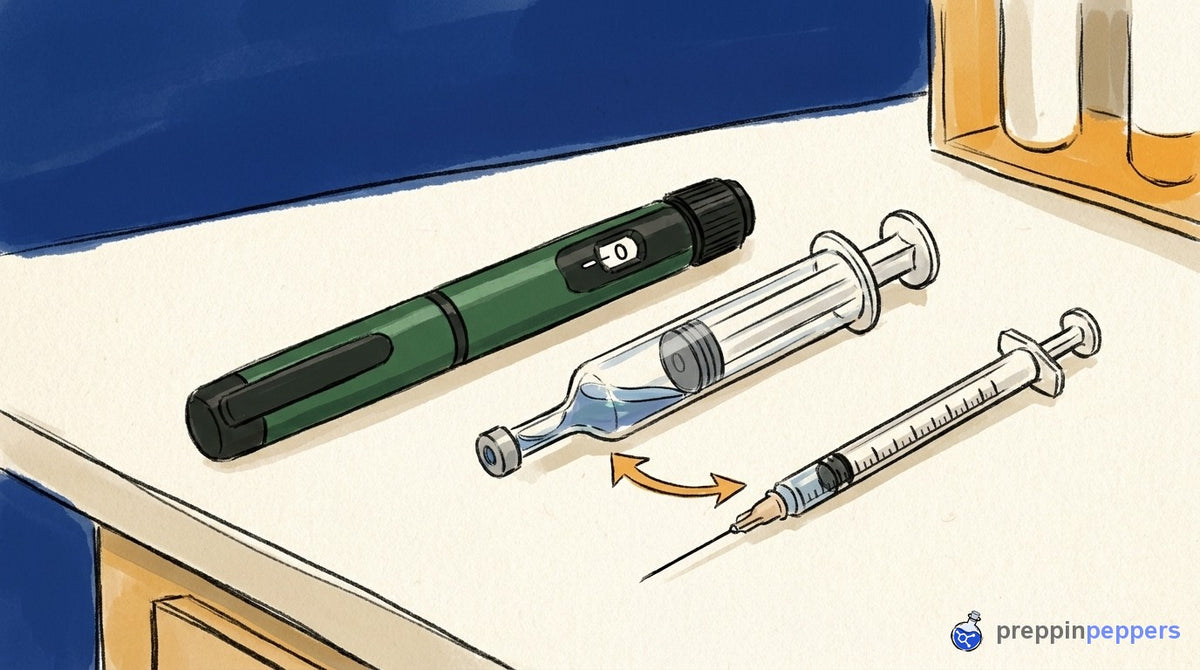

Think of dead volume like the last sip of a smoothie left in a straw: drawn up, but never reaching the glass. In a peptide cartridge, dead space is the channel inside the needle hub plus the film of liquid left behind after the plunger bottoms out — a physical property of the hardware, not a flaw in technique.

Calculating the Financial Impact

A dead volume of 0.05 ml per draw is common on a standard cartridge. Repeated over 100 draws, that is 5 ml of solution lost to hardware alone. On a $300, 5 mg vial reconstituted in 2.5 ml, that loss equals two full vials disappearing into the fluid path. Cutting dead volume to 0.03 ml per draw recovers 2 ml over the same 100 uses.

Hardware Design Differences

• High dead volume: Cartridges with blunt-tip or Luer-lock connections. The fluid path is wider and longer.
• Low dead volume: Pen needles that screw directly onto the cartridge, creating a short, tight fluid path.

Fit drives fluid path length, so specs matter as much as the dead volume figure itself. Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We have not tested other manufacturers' hardware against ours, so compatibility beyond our own product line is unconfirmed.

Ask any manufacturer for its stated dead volume and stopper length. An unpublished figure is informative on its own.

Glass Cartridges: The Case for Tighter Tolerances

Not all 3ml glass cartridges are manufactured equally. Barrel diameter and stopper fit are critical: a loose stopper can skip or stutter during a slow, precise dial, throwing off your volume accuracy, and a barrel that is too wide can let the stopper sit crookedly.

Which Cartridges Fit Our Pens?

Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside. We manufacture and tolerance-check our own hardware only, so we can't say whether our cartridges fit third-party pens we haven't tested.

Material Integrity: Borosilicate Glass and Bromobutyl

High-quality cartridges use borosilicate glass, which resists pH shifts from some diluents and is more chemically inert. The stopper is usually bromobutyl rubber, sealing well without shedding particles. Lower-grade glass or inconsistent rubber can interact with your peptide over time.

Tactile Feedback and Precision Dosing

The difference shows up in the click-dial mechanism. A tight-tolerance cartridge turns smoothly with subtle, uniform resistance, while a low-tolerance cartridge may feel gritty or have dead spots where the plunger doesn't move - a tactile issue that also affects how precisely you can set your research volume.

Metal vs. Plastic: A Real Trade-Off

Reusable pens are built one of two ways: a metal (usually aluminum) body with a plastic cartridge holder, or an all-plastic shell. This is a hardware decision, not a cosmetic one, and it affects how consistent your dead volume stays over hundreds of uses.

Why Metal Bodies Hold Up Better

A metal body adds weight, but that mass resists ambient temperature swings, which can matter when handling viscous solutions on a bench where temperature fluctuates from one session to the next. Metal is also more resistant to cracking or stress fractures from drops or overtightening, a real consideration for hardware you handle daily over the long term.

Where All-Plastic Pens Fall Short

All-plastic pens are lighter and less expensive up front, and they hold up fine for occasional bench use. The tradeoff shows up over time: plastic threads wear down with repeated use, and a worn thread can leave the pen body sitting loose against the cartridge holder.

That looseness introduces a small air gap between the components. Since dead volume is the sum of every gap fluid has to fill before it reaches the needle, a loose plastic connection quietly adds to it. For frequent, ongoing use, a metal body keeps that variable out of the equation.

The Diluent and Storage Mistakes That Ruin Good Hardware

Even the best pen cannot compensate for poor reconstitution or storage habits. Three handling mistakes account for most of the vial waste researchers report.

1. Choosing the Wrong Diluent

The first mistake is treating diluent choice as interchangeable. Bacteriostatic water contains benzyl alcohol as a preservative, and that additive is not neutral: several peptides show reduced solution stability, faster aggregation, or altered pH tolerance when stored in a benzyl-alcohol solution versus sterile water or saline. Matching diluent to peptide chemistry, not convenience, is what actually protects the contents of your cartridge.

2. Improper Cartridge Storage

The second mistake is storage. A reconstituted solution in a cartridge is not indefinitely stable: the needle tip, the stopper interface, and the small internal volume all add surface area for degradation reactions to occur.

Cold storage (2-8°C) slows this process but does not stop it, and visible changes are a useful early warning. A colored solution, such as a copper-peptide complex, fading from blue toward clear typically signals oxidation of the metal-peptide bond, not a benign shift. Treat any unexpected color, clarity, or particulate change as a sign to retire that cartridge, regardless of how many days remain on your storage window.

3. Neglecting Internal O-Rings and Seals

The final mistake is ignoring the O-rings and seals inside the pen. These small rubber rings seal the interface between cartridge and needle, and over time they dry out, crack, or pick up residue.

Inspect them periodically and, if needed, lubricate lightly with a silicone-based lubricant, never petroleum jelly, which degrades rubber. A failing O-ring lets air into the system, and air in the system means the volume you dispense is no longer just liquid.

What the research community gets wrong about peptide pen dead volume

Dead volume is the small amount of reconstituted solution trapped in the needle hub and cartridge tip after a full plunger push. A few common assumptions send researchers looking in the wrong place when they try to cut waste.

• They treat dead volume as one fixed number. The cartridge is only half the story. The needle you screw on changes the trapped volume a lot. A short, direct screw-on needle holds back less liquid than a longer Luer-lock hub, even on the same cartridge. Our pens take universal 28G-33G screw-on pen needles, so gauge and hub style are the first things worth testing.
• They think "low dead space" means zero waste. Low dead space hardware reduces the trapped liquid, it does not remove it. Some solution always clings to the wet inner surfaces of the needle and tip.
• They assume any 3 ml cartridge behaves the same in the barrel. Stopper depth changes how far the plunger seats, which is part of what gets read as "dead volume." Our pens take standard 3 ml (300-unit) glass cartridges with the 11 mm long plunger (stopper), the cartridge we sell. 3 ml cartridges are also made with a shorter, about 8 mm plunger, and a pen is built for one height, so check that a cartridge from another source has the 11 mm long plunger before loading it; the glass looks identical from the outside.
• They blame the glass barrel first. Barrel tolerance matters for a smooth dial, but the needle hub geometry is usually the bigger source of trapped liquid. Check the hub and connection before you swap cartridges.
• They assume measuring it needs special gear. You can estimate trapped volume with a lab balance. Weigh the cartridge and needle after a full push, capture or rinse out the residual liquid, and reweigh. For water-like diluents, about 1 gram is close to 1 milliliter.
• They take the printed spec as exact for their setup. A stated value like 0.05 ml is a starting point. Your real trapped volume shifts with the needle you pair, how thick the diluent is, and how fully the plunger seats.

From our bench: We keep meaning to pin this down with a balance instead of eyeballing it. If you have weighed a 3ml cartridge and needle on a lab balance right after a full plunger push, then captured the trapped liquid and reweighed, we would like to hear your grams-to-milliliters figure and which needle you paired with which cartridge. Real measurements from different pen-and-needle combinations would let everyone here compare hardware honestly.
